SPECIFICATIONS

Battery Types: Li-ion / Lead-Acid / User Defined

Brand Name: PowMr

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

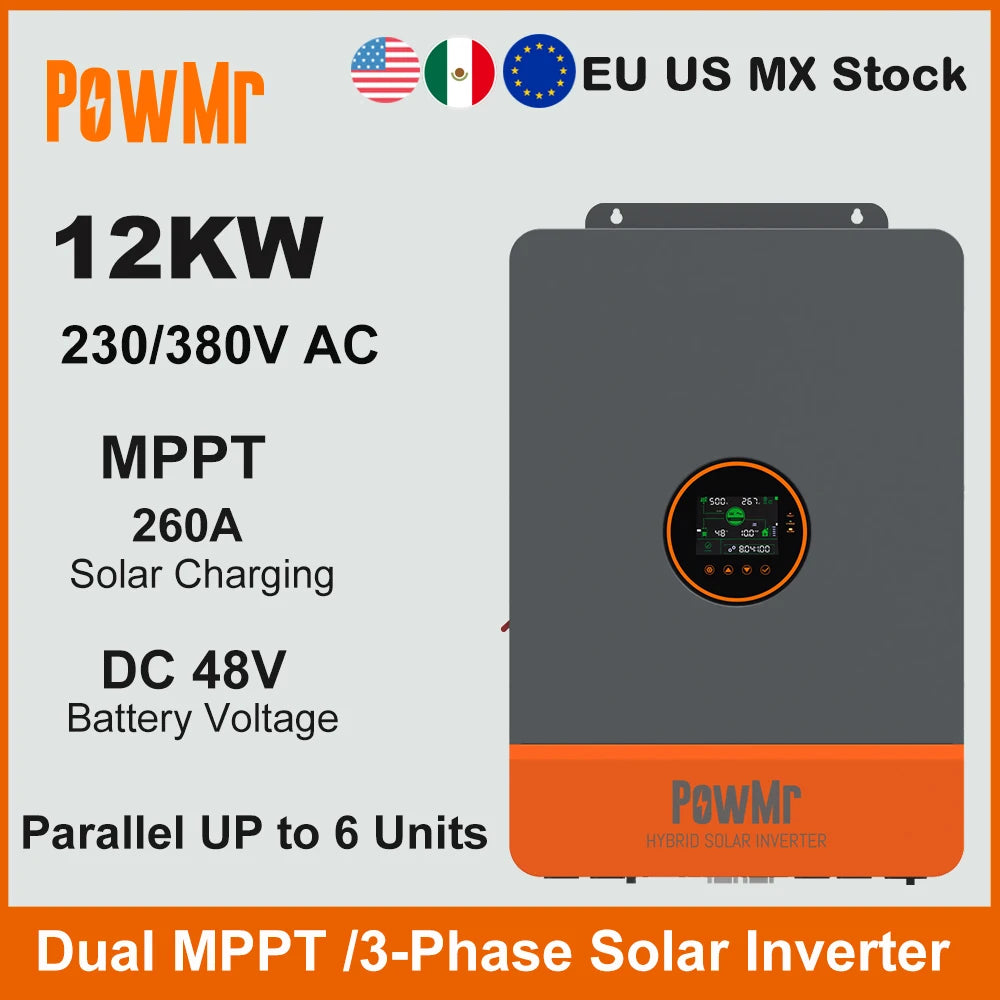

Feature 1: 12KW 3-Phase Solar Hybrid Inverter

Feature 2: Three-Phase Solar Inverter

Feature 3: MPPT Solar Inverter

Feature 4: Dual MPPT

High-concerned chemical: None

Internal Interface: RS485 / CAN / USB / Dry contact

Is Smart Device: Yes

Max. Hybrid Charging Current: 260A

Model Number: POW-SunSmart Series

No. of MPPT: 2

Origin: Mainland China

Output Frequency: 50Hz / 60Hz

Output Waveform: pure sine wave

Rated Battery Voltage: 48Vdc

Rated Output Power: 12000W

Rated Output Voltage: 230/400Vac (three-phase)

Warranty: 18 Months

Weight: 30Kg

is_customized: Yes

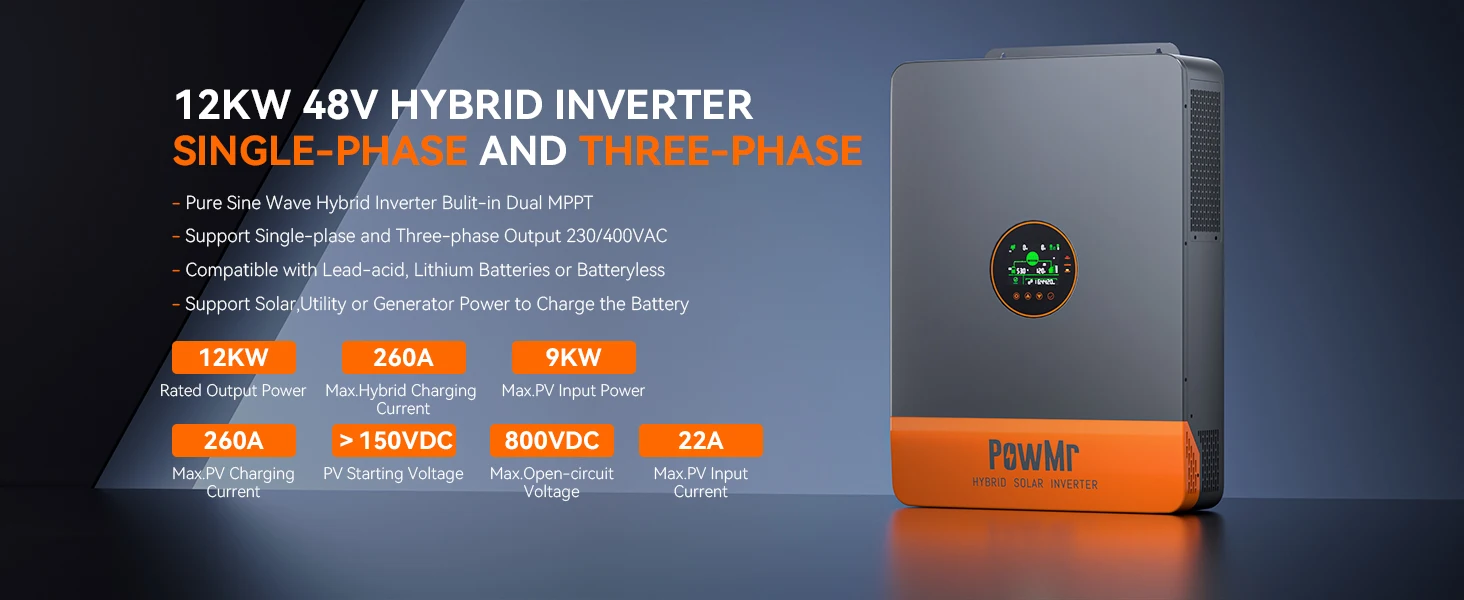

Local Stock 12KW Three-Phase DC 48V Solar Hybrid Inverter 230/400Vac Built-In 260A Dual MPPT Charger 2 PV Input Fit for LifePO4

Product Introduction

Product Features

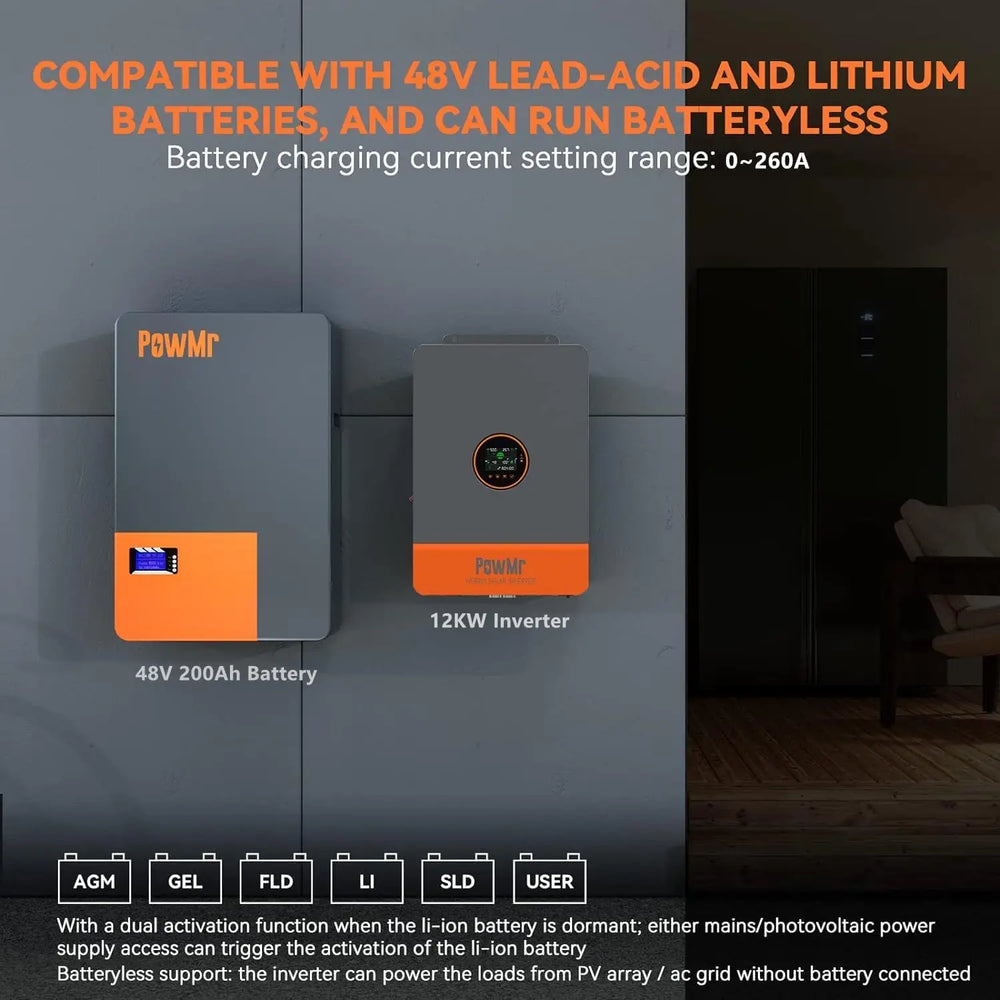

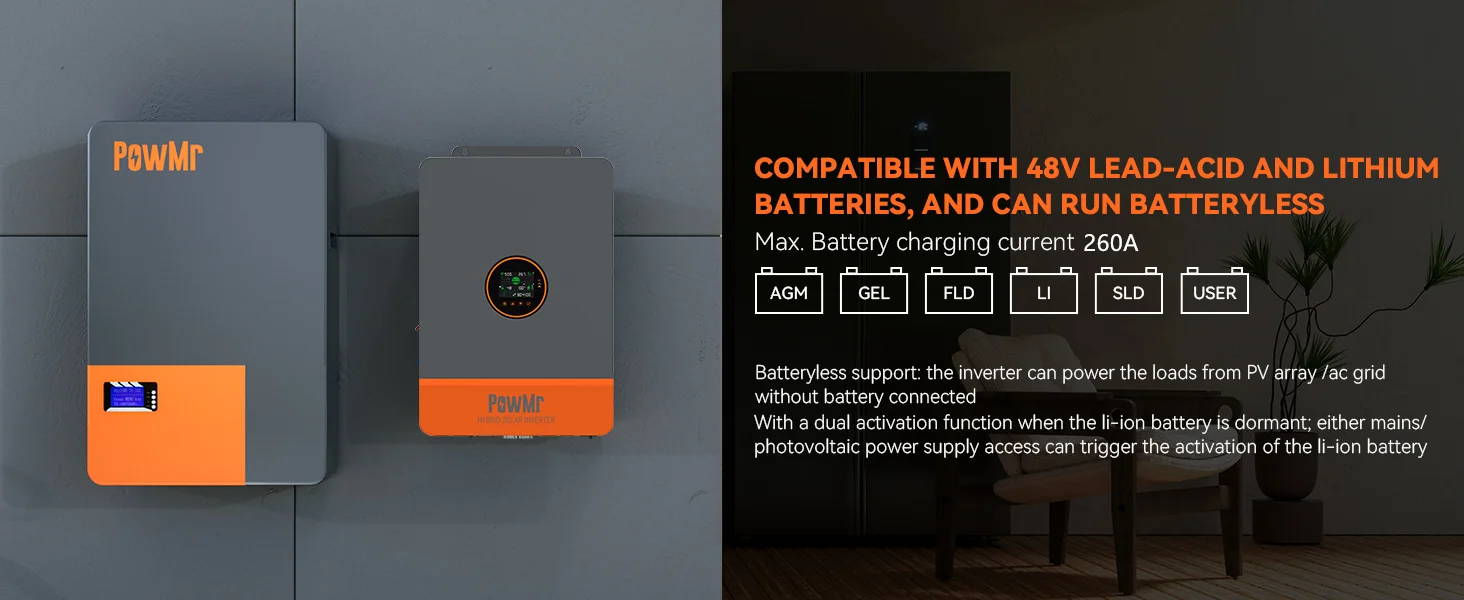

1. Supports lead-acid battery and li-ion battery connections.

2. With a dual activation function when the li-ion battery is dormant; either mains or photovoltaic
power supply access can trigger the activation of the li-ion battery.

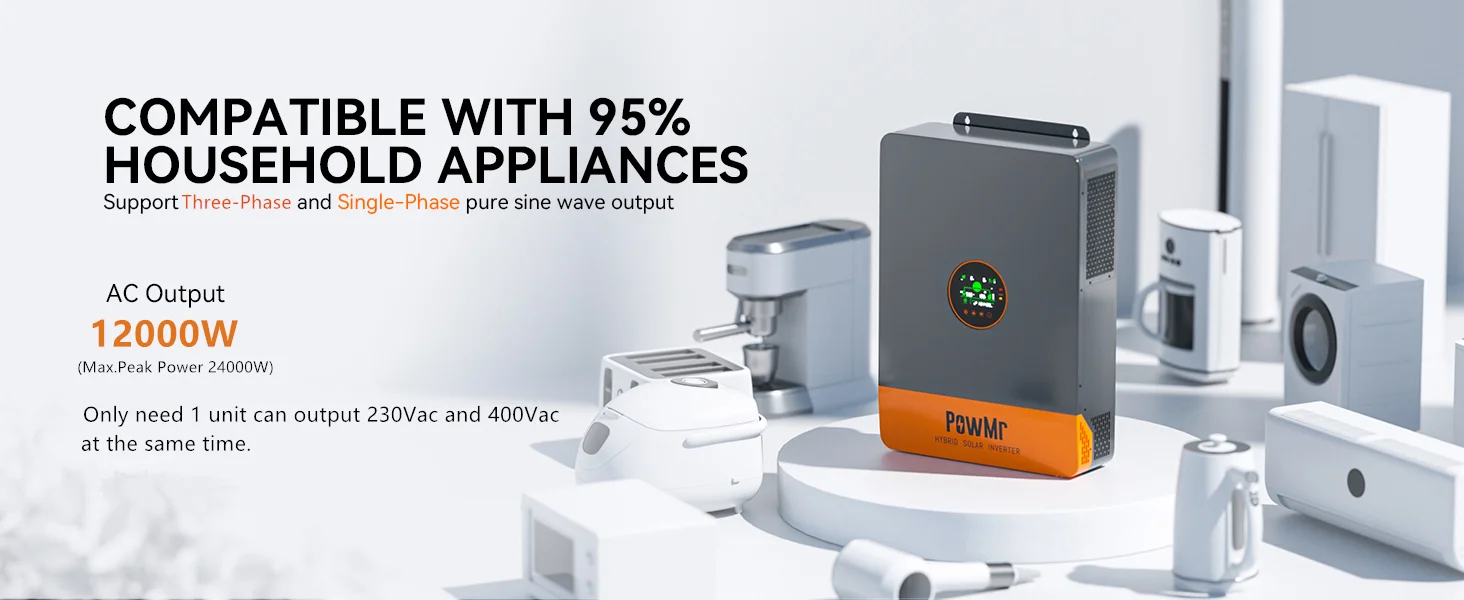

3. Support three-phase pure sine wave output (350~415V).

4. Supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac.

5. Supports two PV inputs, with the function of simultaneously tracking the maximum power
charging or carrying capacity of two MPPT.

6. Dual MPPT, efficiency up to 99.9%, single maximum current of 22A, perfectly adapted to high-power modules.

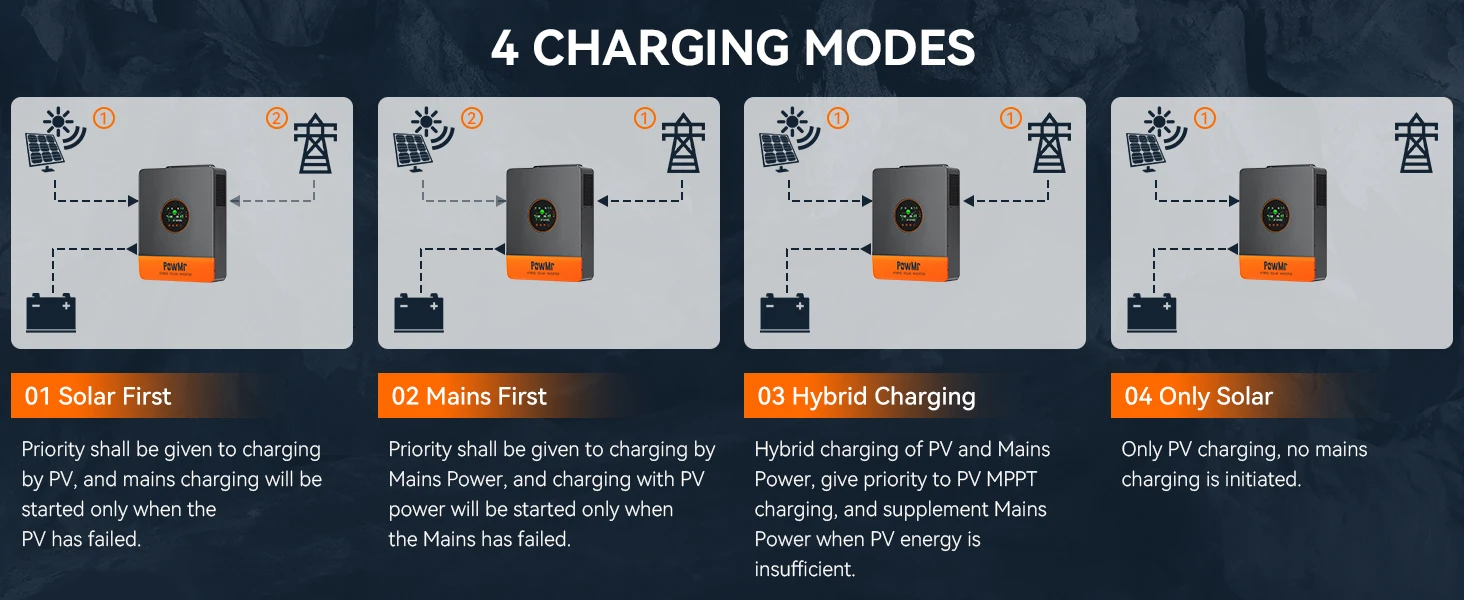

7. 4 charging modes are available: solar only, mains priority, solar priority, and mixed mains and PV
charging.

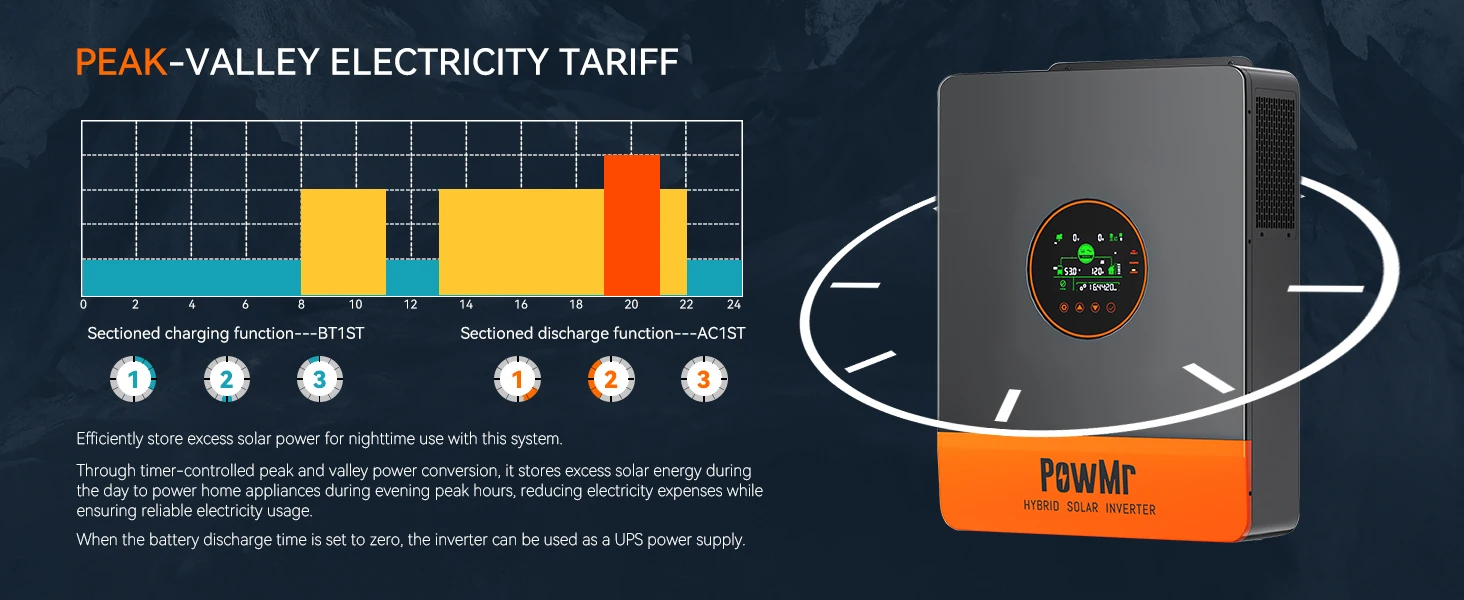

8. With time-slot charging and discharging setting function, it helps users to take advantage of peak
and valley tariffs and save electricity costs.

9. Energy-saving mode function to reduce no-load energy losses.

10. With two output modes of utility bypass and inverter output, with uninterrupted power supply
function.

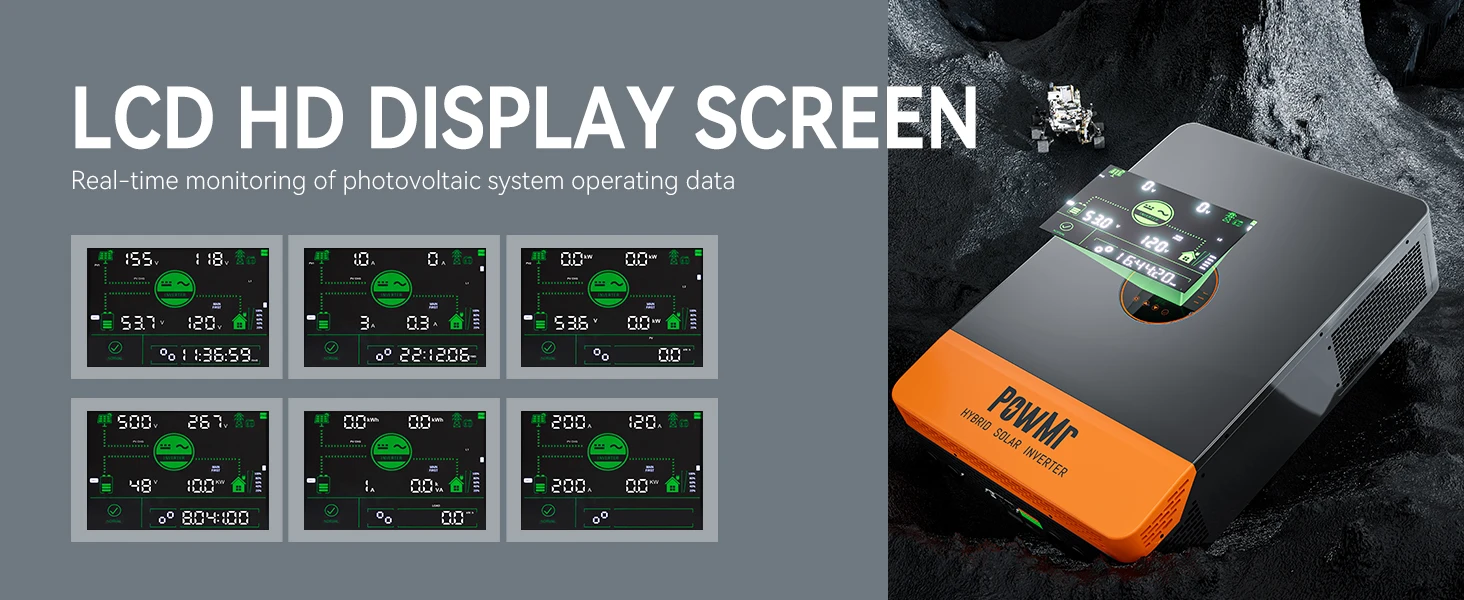

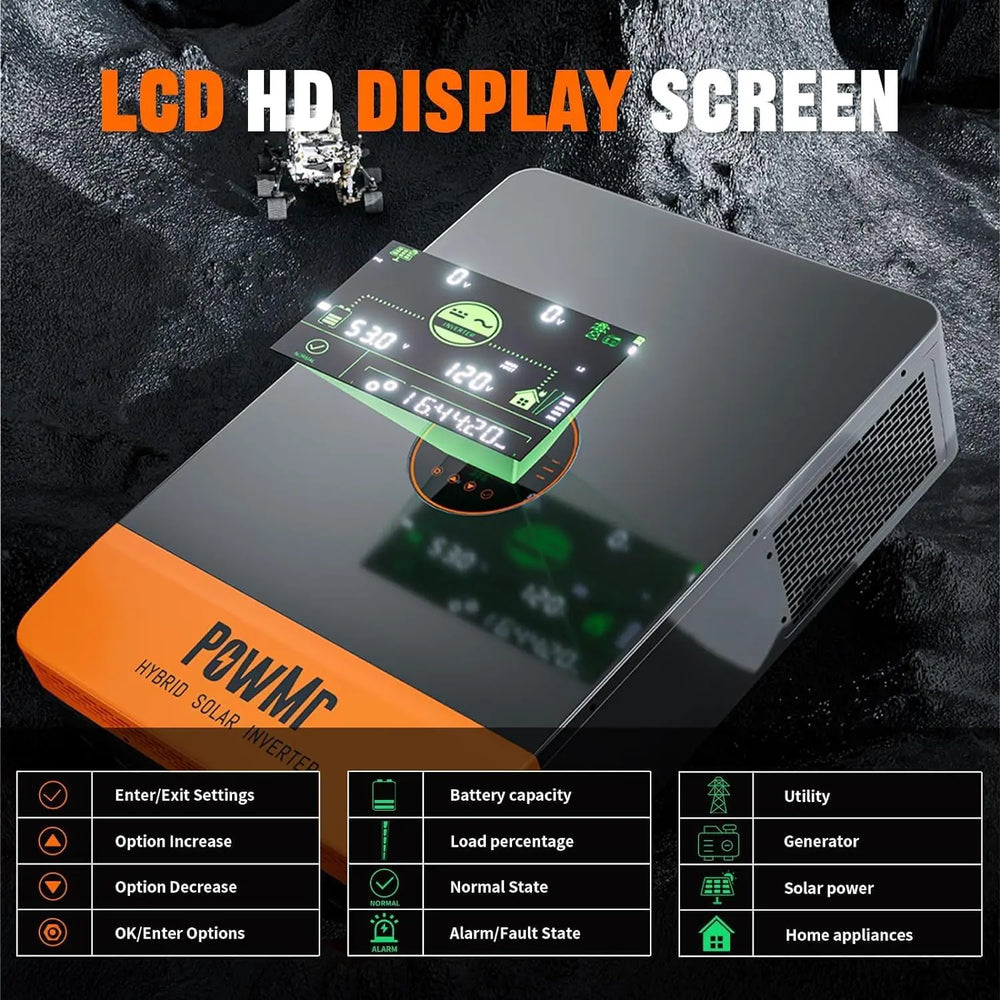

11. LCD large screen dynamic flow diagram design, easy to understand the system data and
operation status.

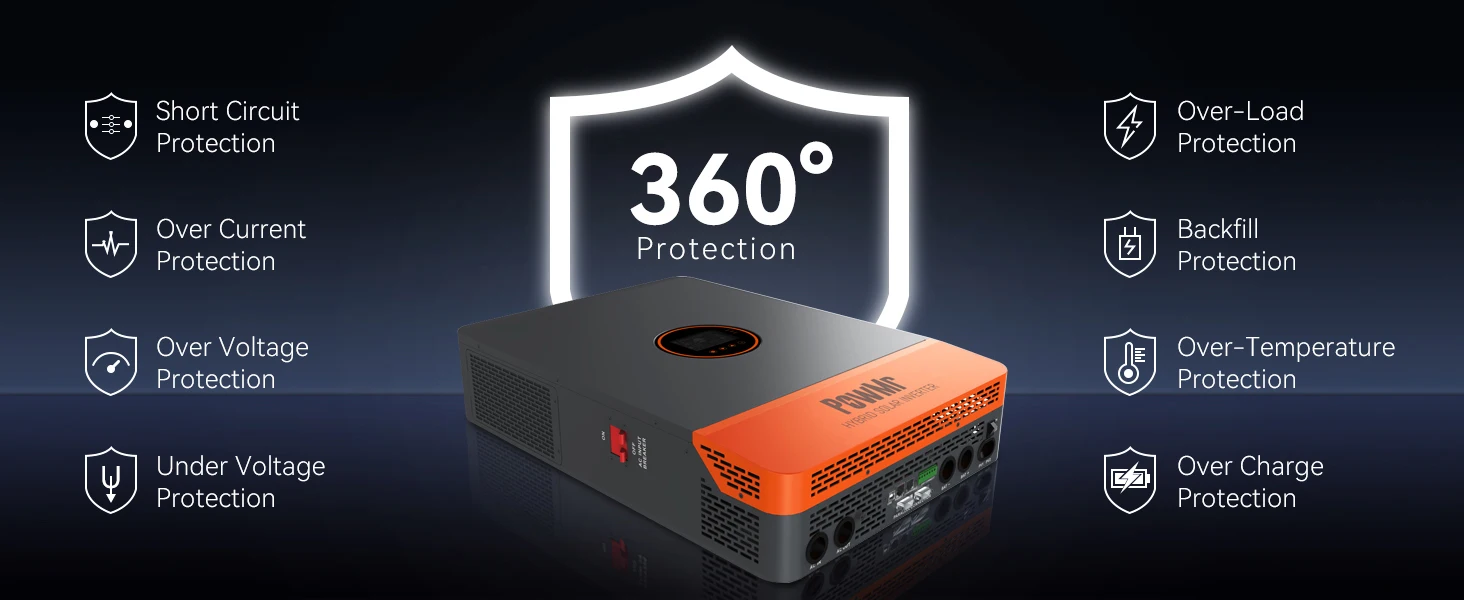

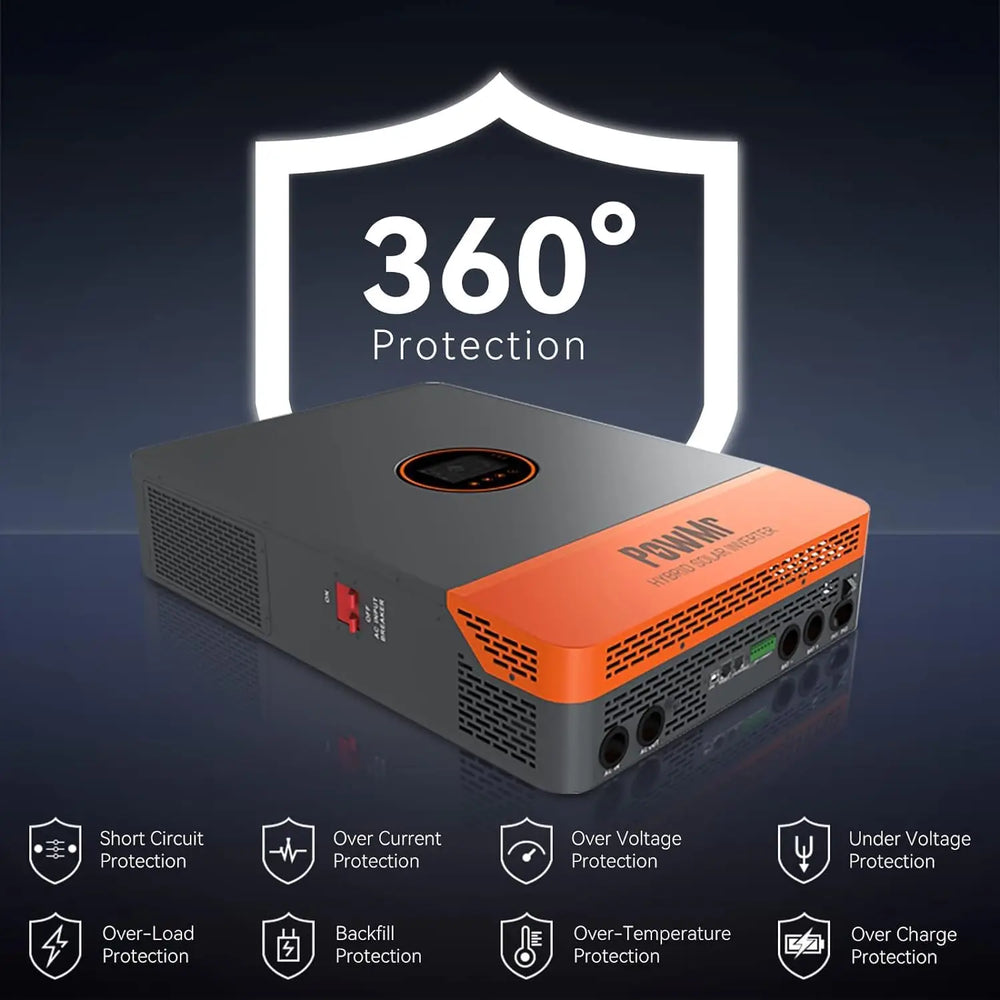

12. 360° protection with complete short-circuit protection, over-current protection, over-voltage
protection, under-voltage protection, over-load protection, etc.

13. Support CAN, USB, and RS485 communication

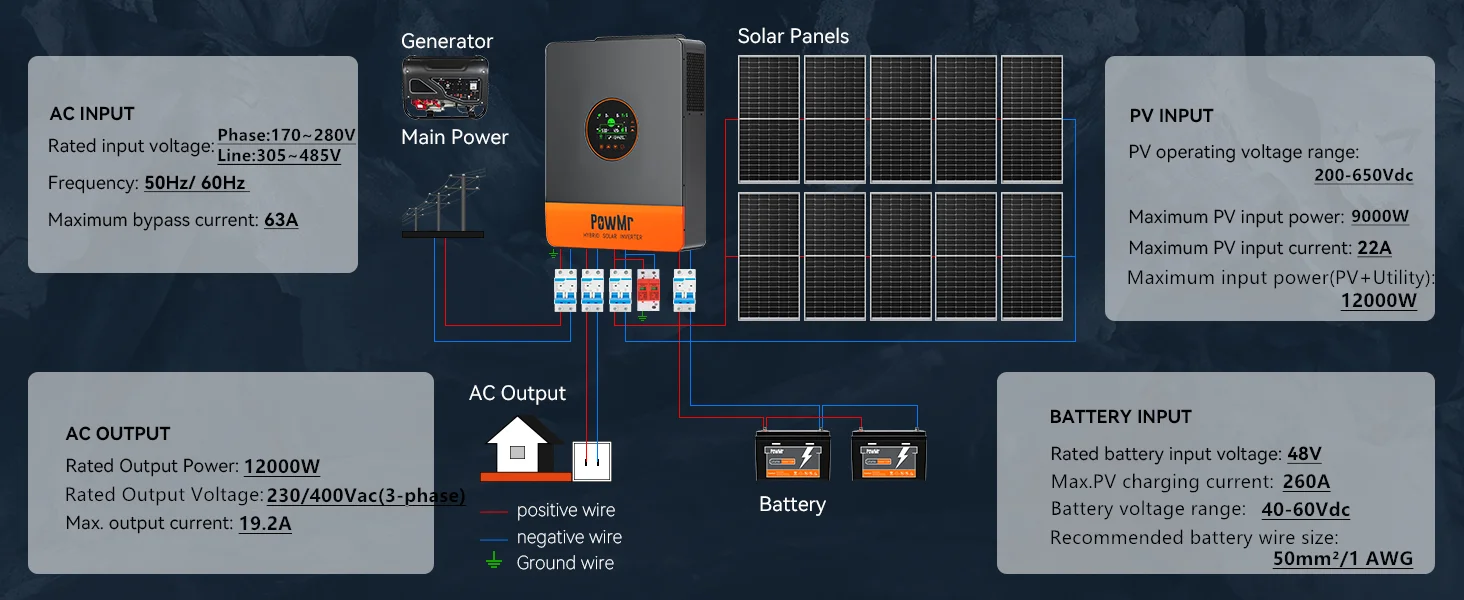

Support Three-phase Pure Sine Wave Output
The 8KW/12KW 48V 220/380V three phase hybrid Inverter supports phase voltage adjustment in the range of 200, 208, 220, 230, 240Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.
