SPECIFICATIONS

Battery Included: No

Brand Name: NONE

Certification: CE

DRO Input Voltage: AC100V-240V 50/60HZ

DRO Resolution: 0.1um-50um

DRO output: 5VDC

High-concerned chemical: None

Origin: Mainland China

Scale Cable: 3 Meters

Scale Input: 5VDC

Scale Resolution: 5um or 1um

Signal: TTL

Warranty: 2 Years

Package includes:

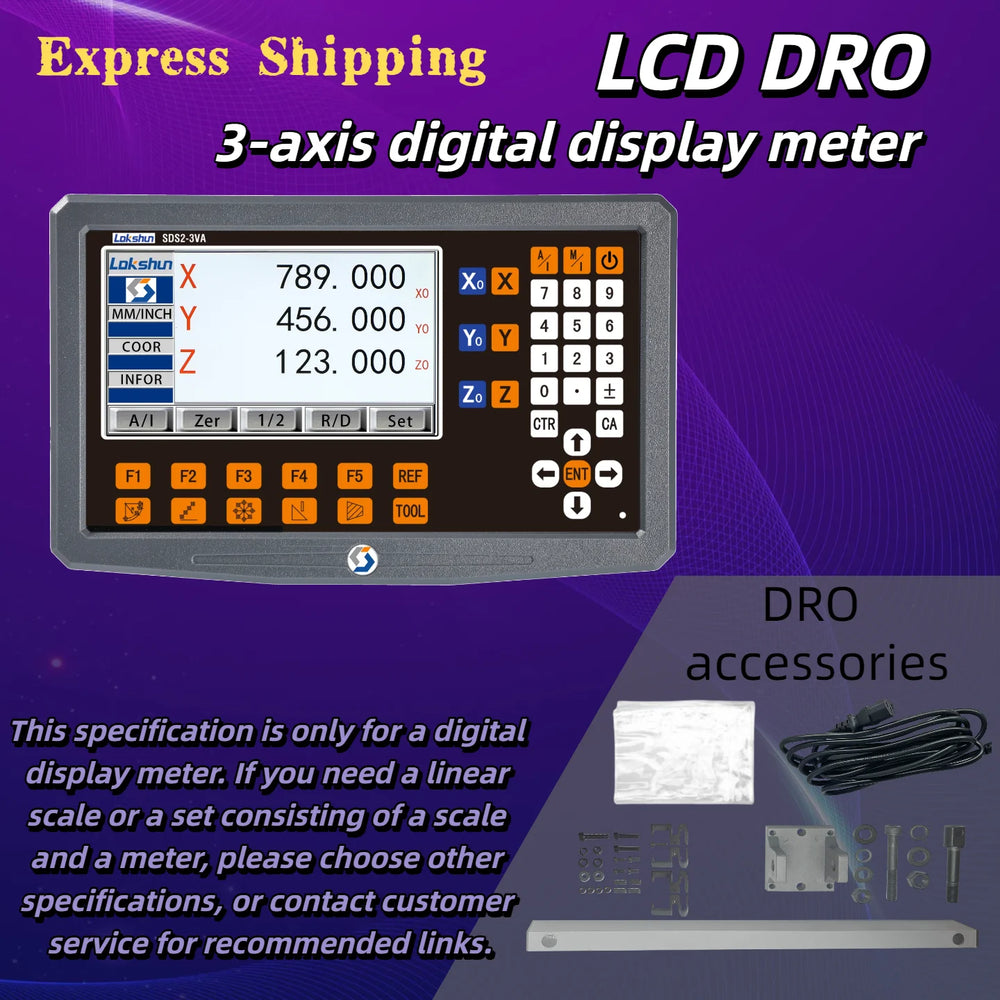

Only SDS3VA DRO

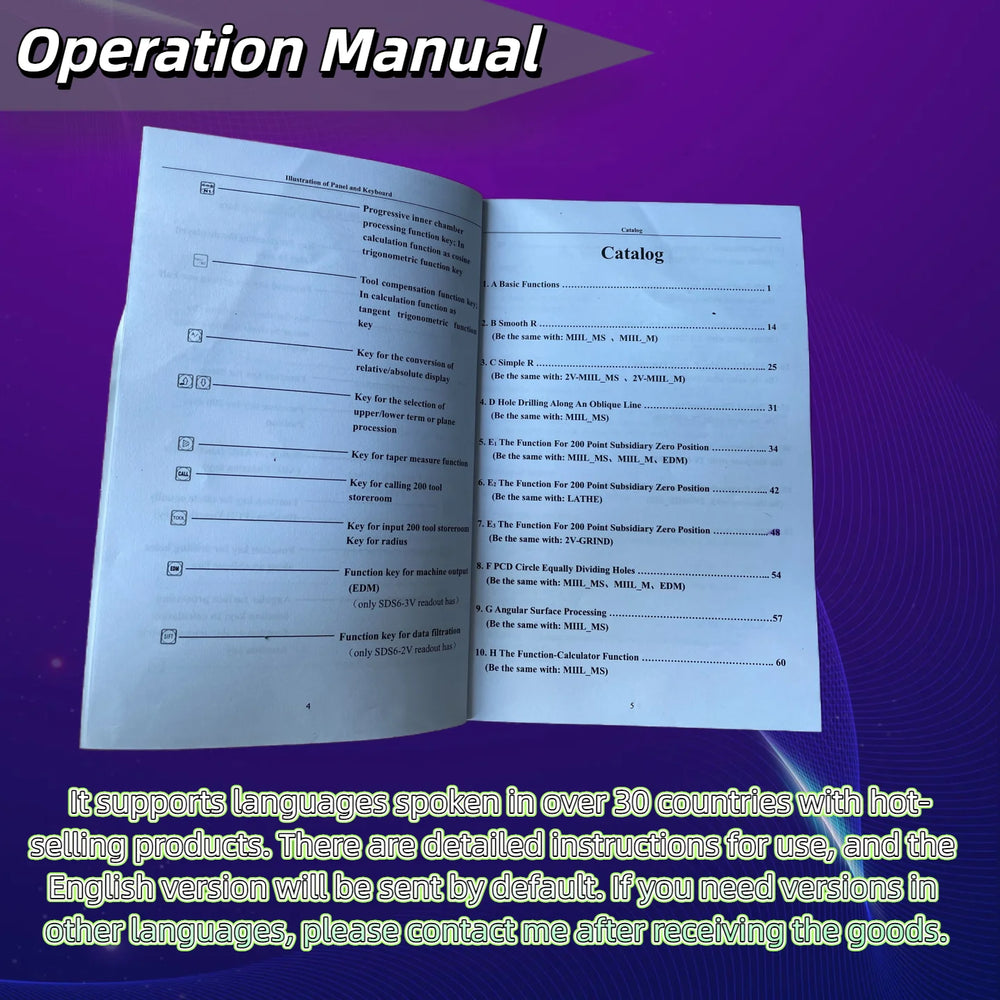

1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)

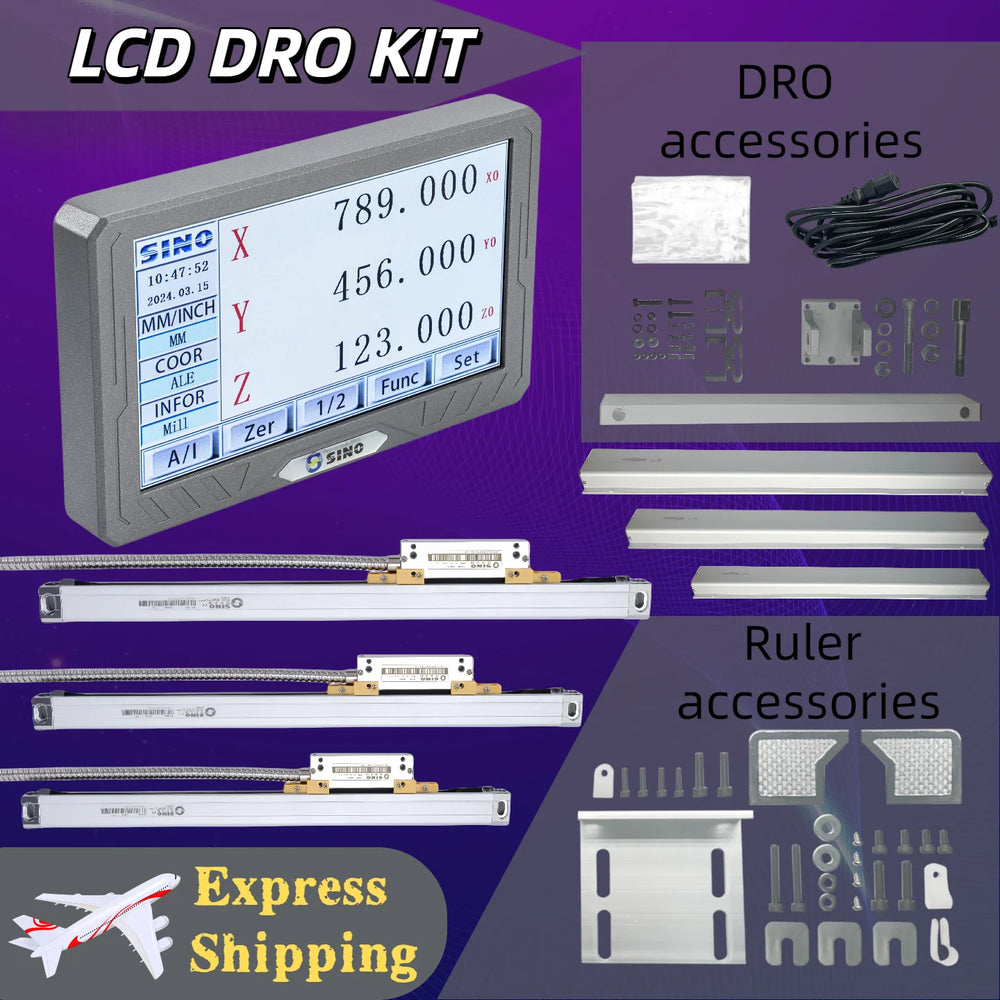

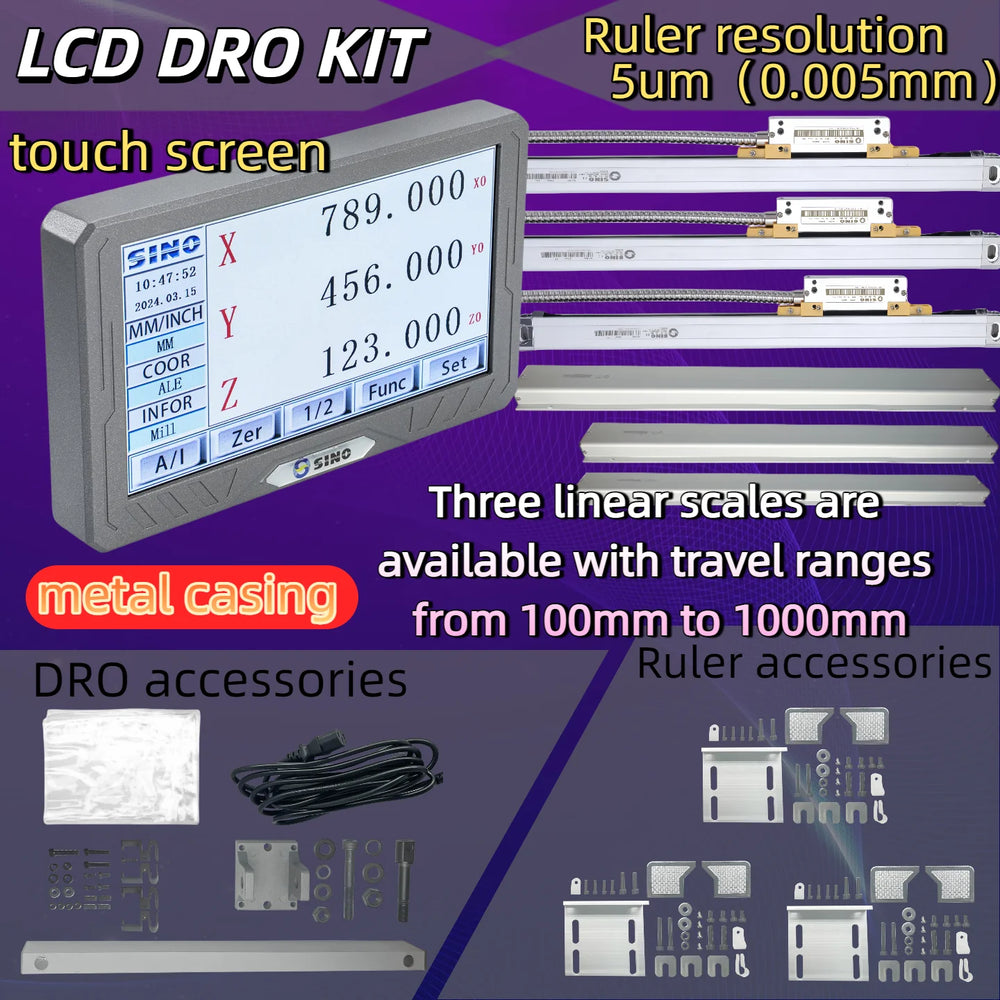

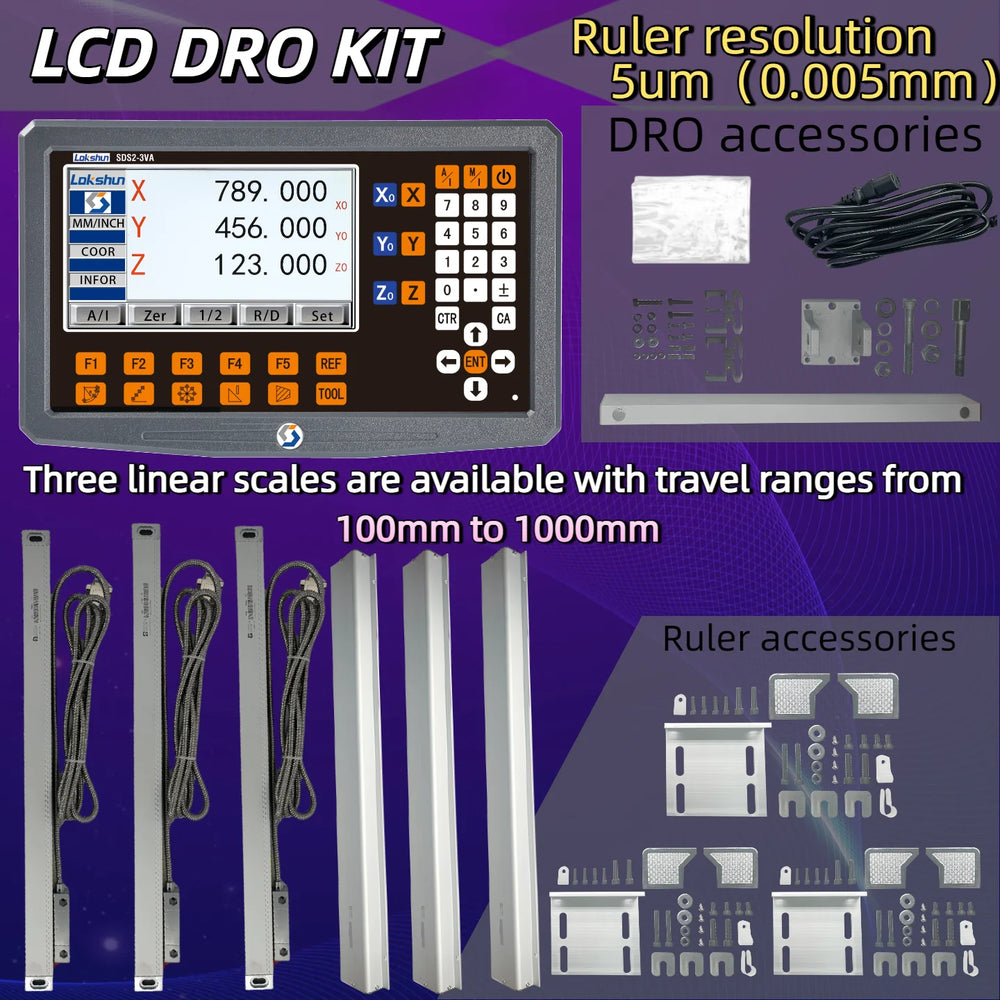

5um SDS3VA kit

1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)

3 pieces 0.005mm(KA35+KA35+KA35) linear scales (with covers, mounting bracket, screw bag)

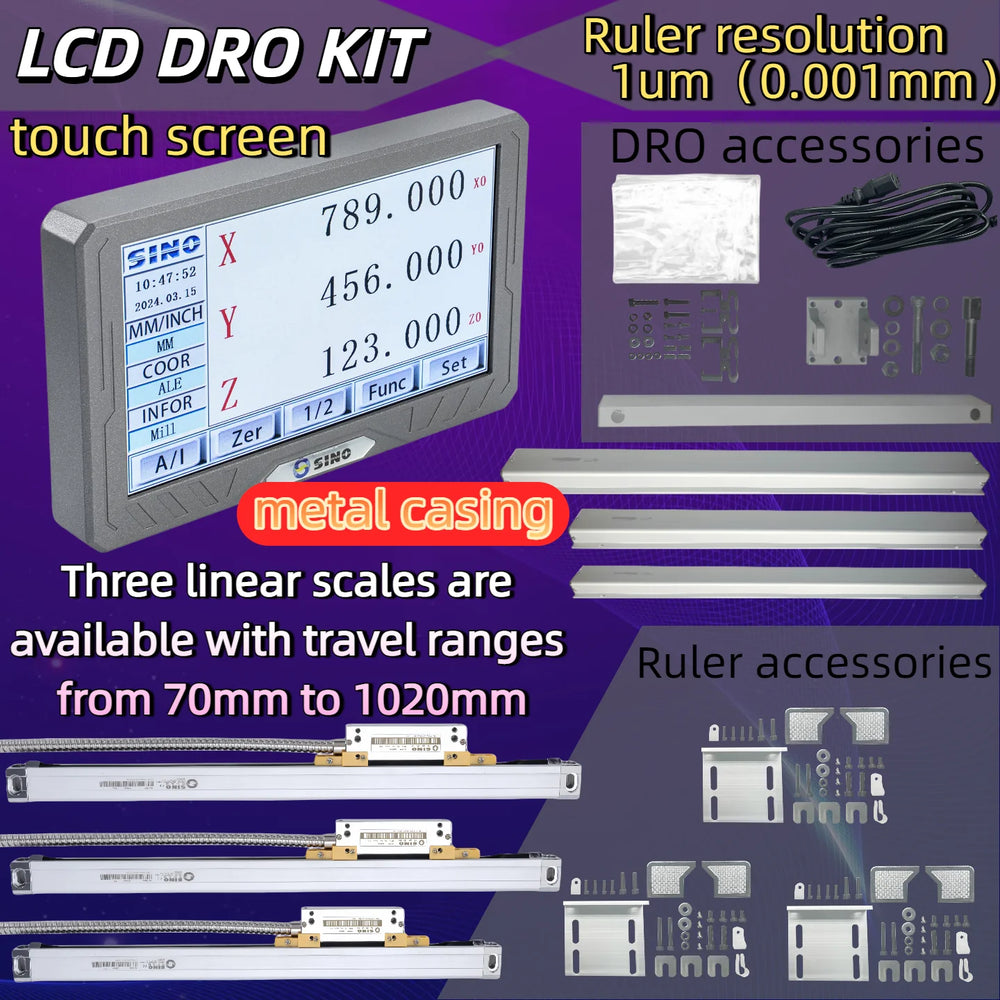

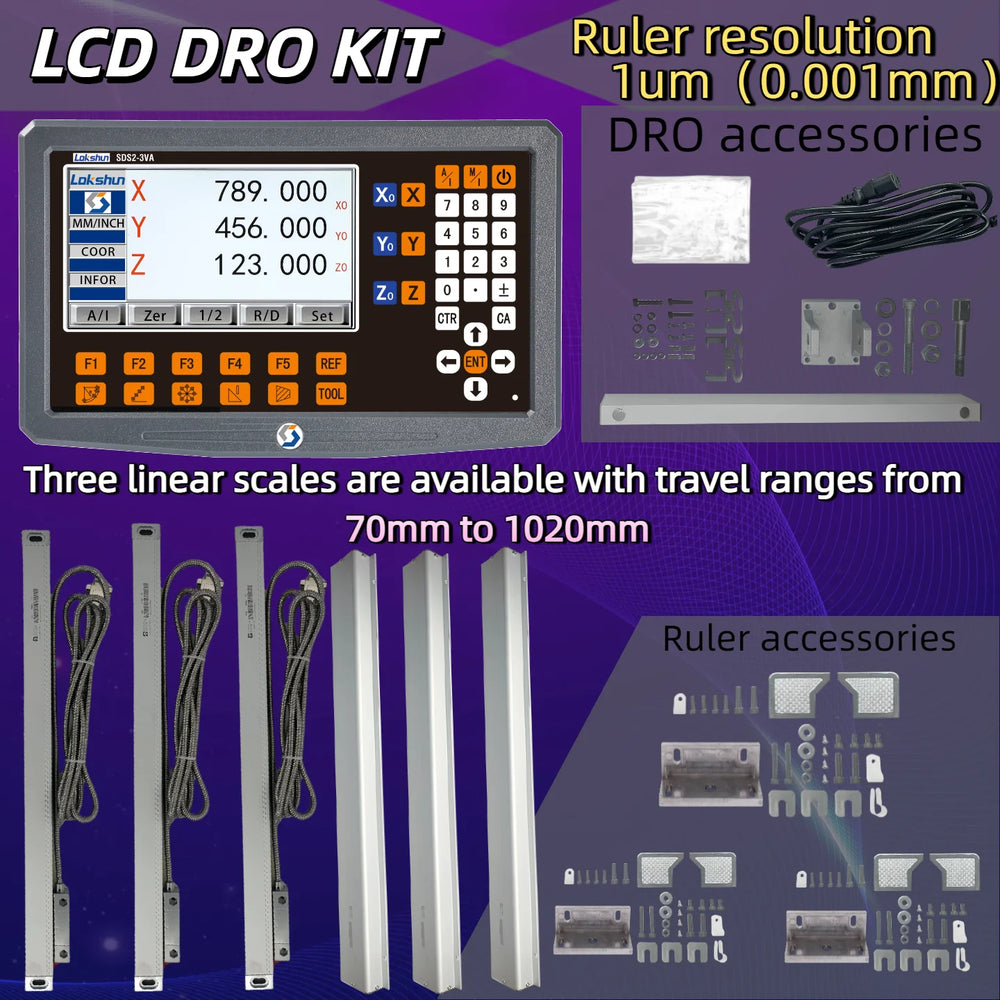

1um SDS3VA kit

1 piece SDS3VA 3 axis display(with user manual, power cord, mounting arm, screw bag)

3 pieces 0.001mm(KA300+KA300+KA300) linear scales (with covers, mounting bracket, screw bag)

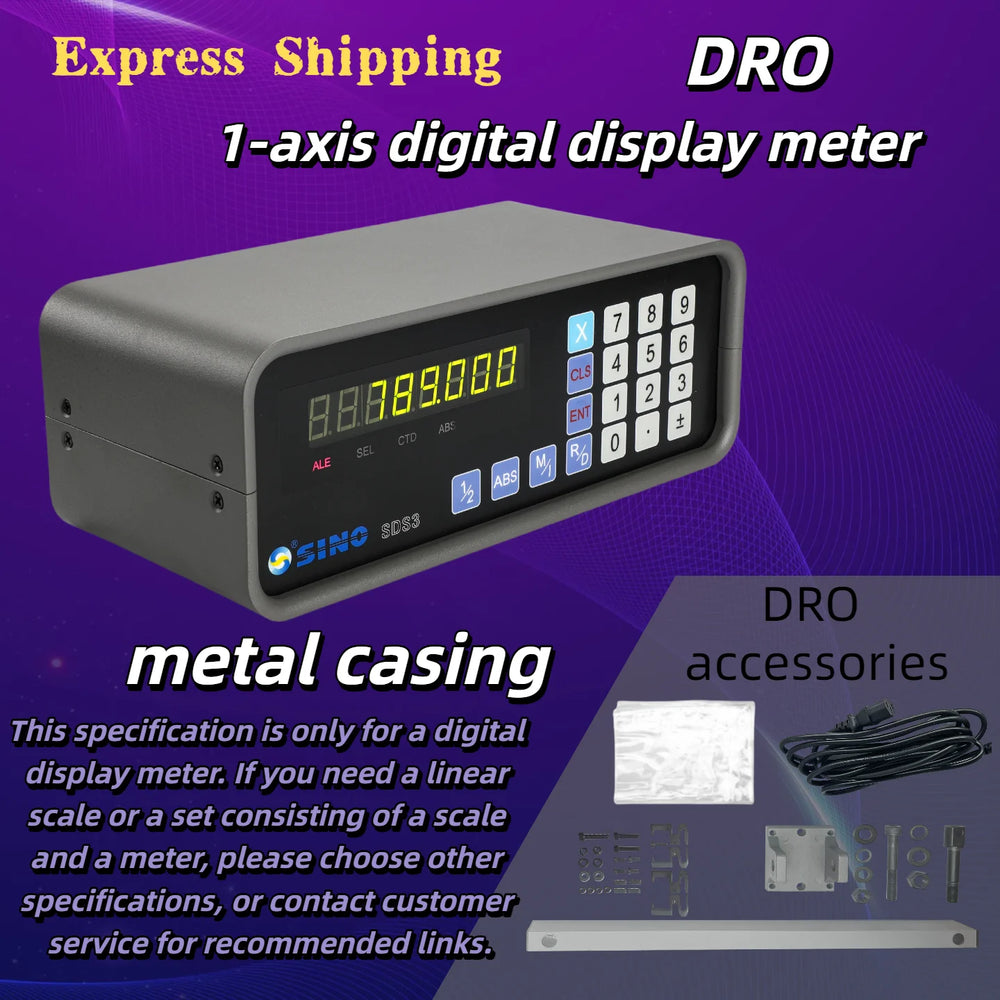

Only SDS3-1 DRO

1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)

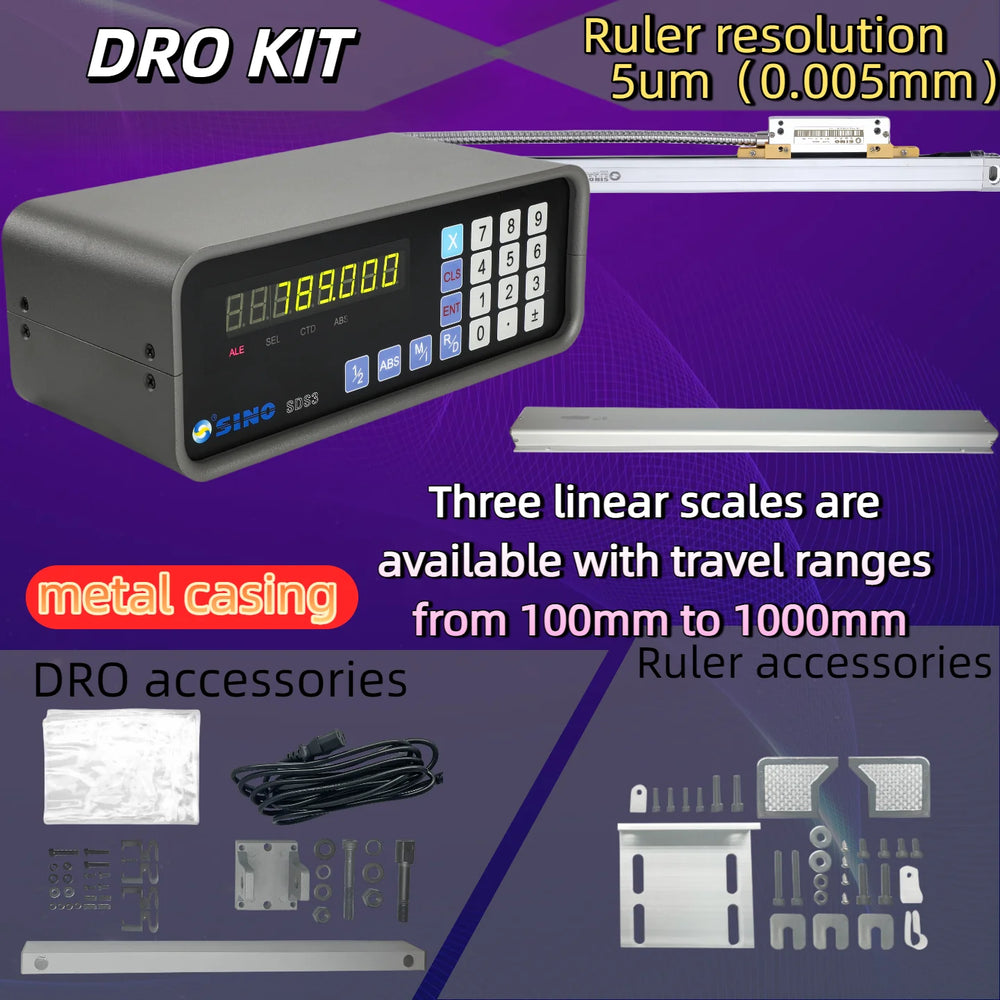

5um SDS3-1 kit

1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)

1 piece 0.005mm(KA35) linear scales (with covers, mounting bracket, screw bag)

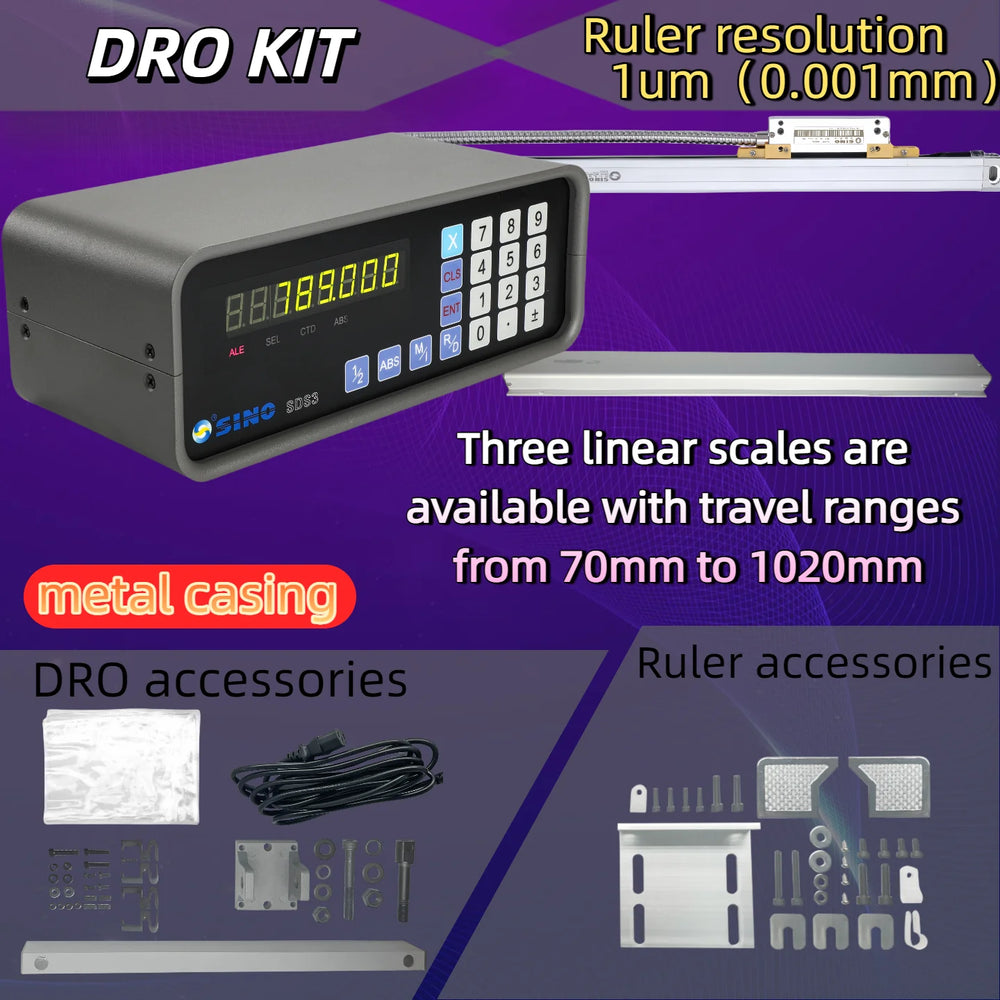

1um SDS3-1 kit

1 piece SDS3-1 1 axis display(with user manual, power cord, mounting arm, screw bag)

1 piece 0.001mm(KA300) linear scales (with covers, mounting bracket, screw bag)

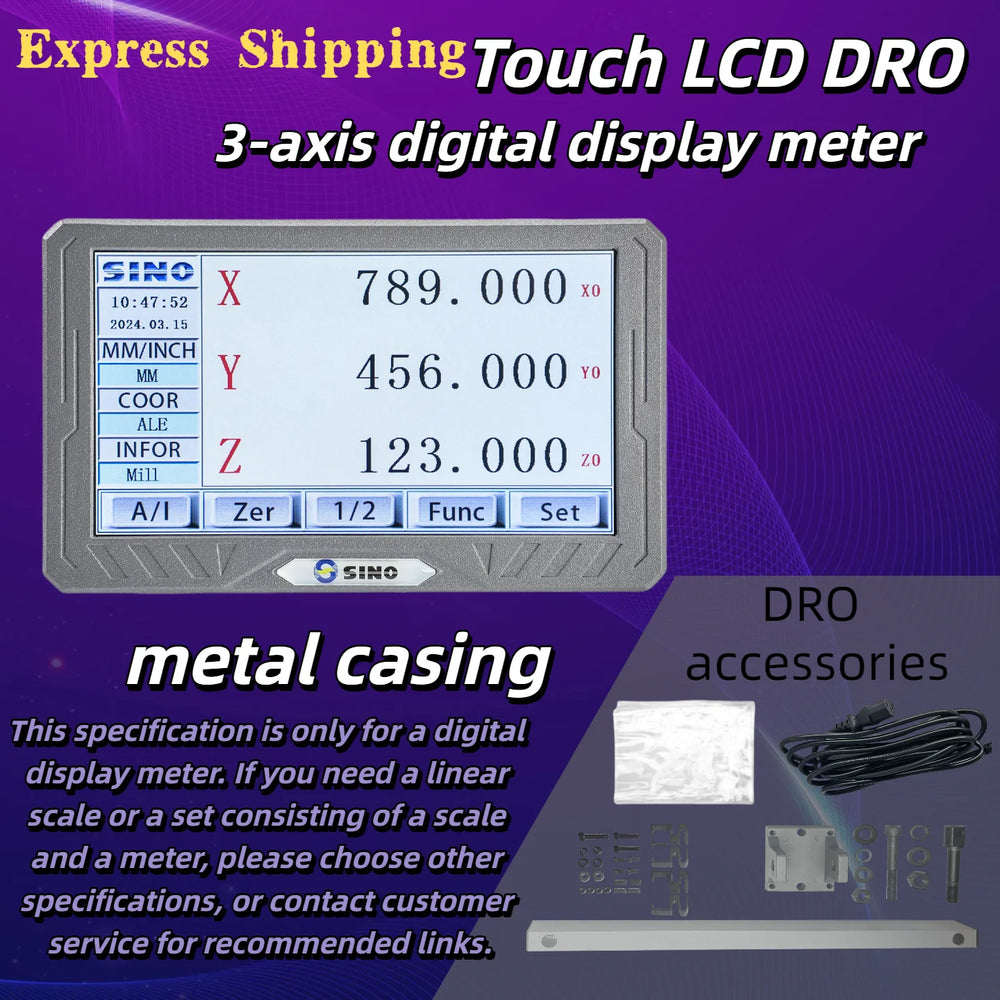

Only SDS200S DRO

1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)

5um SDS200S kit

1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)

3 pieces 0.005mm(KA35+KA35+KA35) linear scales (with covers, mounting bracket, screw bag)

1um SDS200S kit

1 piece SDS200S 3 axis display(with user manual, power cord, mounting arm, screw bag)

3 pieces 0.001mm(KA300+KA300+KA300) linear scales (with covers, mounting bracket, screw bag)

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

How to select scales length?

For model: KA35, 100mm, 150mm, 200mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 550mm, 600mm, 650mm, 700mm, 750mm, 800mm, 850mm, 900mm, 950mm, 1000mm for choose.

For model: KA300, 70mm, 120mm, 170mm, 220mm, 270mm, 320mm, 370mm, 420mm, 470mm, 520mm, 570mm, 620mm, 670mm, 720mm, 770mm, 820mm, 870mm, 920mm, 970mm, 1020mm for choose.

Scale length means scales working travel length.

After making order, please leave a message to seller with you needed scales travel length.

【5um】 SDS3VA kit / 【5um】 SDS200S kit : If there is no message left, we will deliver the goods according to the travel lengths of 200mm and 300mm and 800mm.

1um SDS3VA kit / 1um SDS200S kit : If there is no message left, we will deliver the goods according to the travel lengths of 270mm and 370mm and 820mm.

5um SDS3-1 kit : If there is no message left, we will deliver the goods according to the travel lengths of 300mm.

1um SDS3-1 kit : If there is no message left, we will deliver the goods according to the travel lengths of 320mm.

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

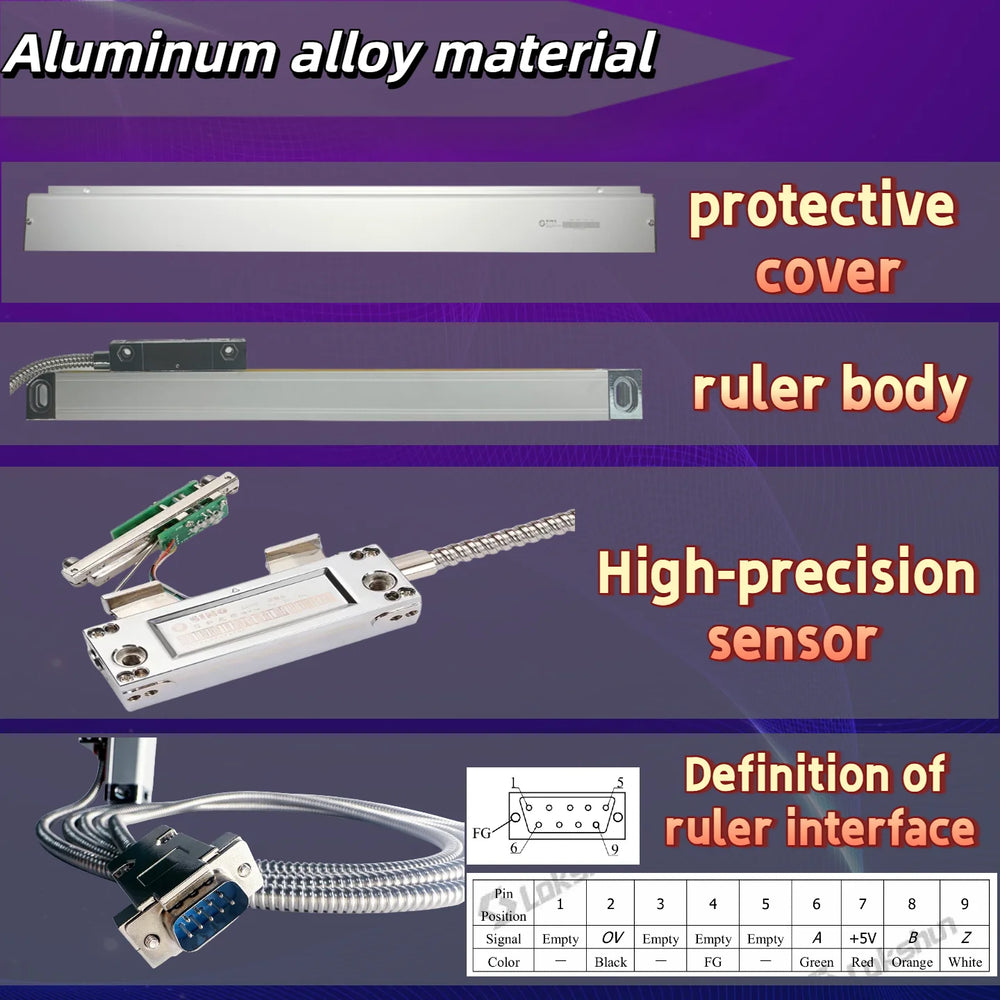

Linear scale parameter

Model: KA35

Available measurement: 100mm to 1000mm

Installation holes distance:measurement +124mm

Total length: measurement +140mm

Dimensions Cross section dimensions: 21.5mmx33.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm

Cable length: 3 meters

Model: KA300

Available measurement: 70mm to 1020mm

Installation holes distance:measurement +90mm

Total length: measurement +106mm

Dimensions Cross section dimensions: 25mmx34.5mm

Input voltage: 5VDC

Output signal: TTL

Resolution: 5um/0.005mm or 1um/0.001mm

Cable length: 3 meters

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

DRO parameter

Voltage Range: AC 100V~240V/50HZ~60HZ

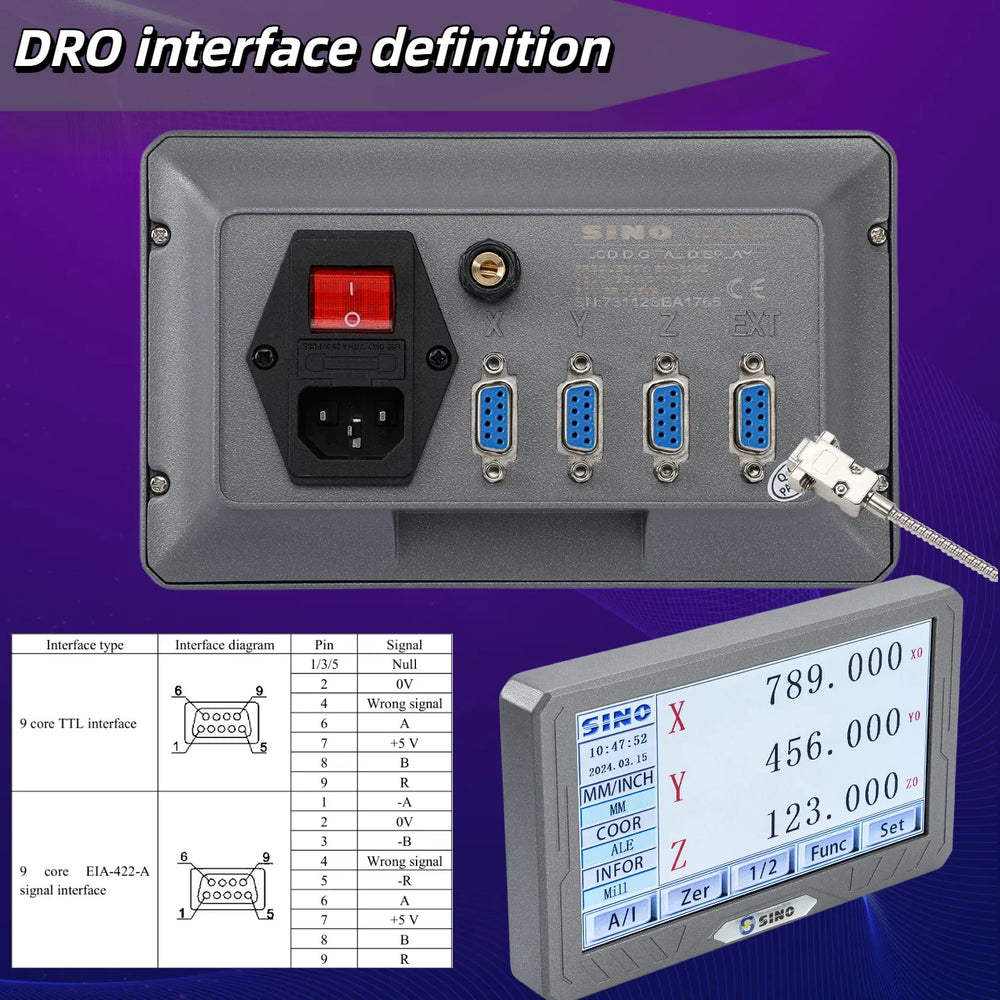

Acceptable Signal: TTL square wave/ EIA-442

Acceptable resolution: 50um ,10um ,5um ,2um ,1um , 0.5um ,0.1um

Basic Functions

"mm/inch" Conversion Display

200 Points Auxiliary Zero Position Function

Mid-split Function

Segmented Error Compensation

Linear Error Compensation

Power Interruption Memory

Sleep Switch

Mathematics calculation

Smooth R

Simple R

Hole Drilling Along An Oblique Line

The Function For 200 Point

PCD Circle Equally Dividing Holes

Angular Surface Processing

The Progressive Progressing

The Function Calculator Function

N3 Function

Advantage

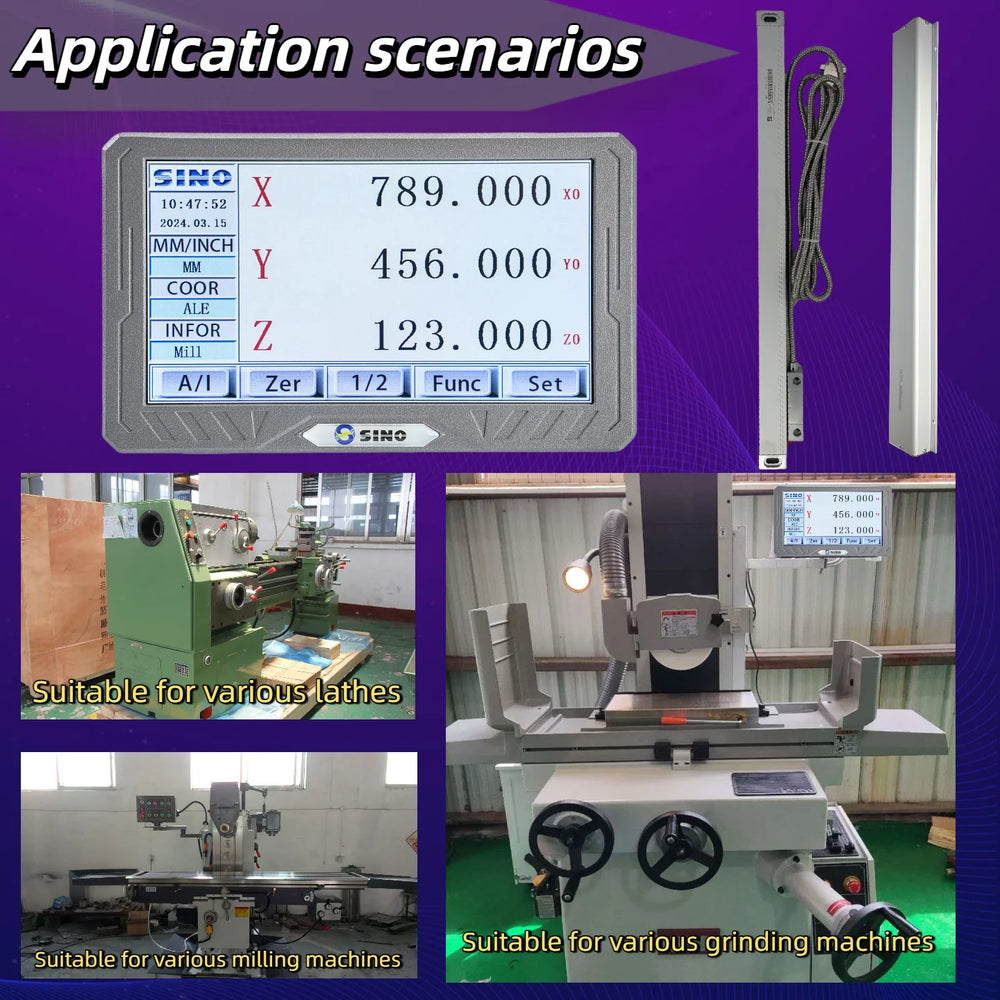

Full of feature & can widely used for mill, lathe, drilling, boring, wire cutting etc.

The wide voltage AC100-240V can be widely used in all over the world.

We offer US, AU, EU, UK different type plug suite for different countries if need.

The available input frequency of DRO is up to 5MHZ with A/B, it is also advanced in the world, and it's the first manufactory who employs 16 and 32 bits calculator in DRO system in China.

It caters to a global audience, making it an ideal choice for professionals and hobbyists alike.

The user-friendly interface ensures that users can operate the device with ease, regardless of their technical expertise.
