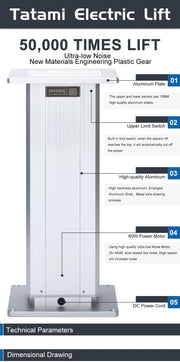

Electric Table Lift Tatami Column 12V 24V DC Motor Control Support Pillar Aluminum 100kg Load Adjustable Desk Platform Actuator

Electric Table Lift Tatami Column 12V 24V DC Motor Control Support Pillar Aluminum 100kg Load Adjustable Desk Platform Actuator

$605.37 $1,008.95
Availability:
In stock
SKU:
100005629:200309433#DC12V 270A AL;200007763:201336100;35:202235806#With WIFI Controller
Product type:
Unknown Type
Vendor:
Collections:
24/48 HOUR DELIVERY
SHIPPING TRACKING
GUARANTEED PRODUCTS

SPECIFICATIONS

Brand Name: DIHOOL

Certification: CCC,ce,ROHS,CE

Color: Silver

Commutation: Brush

Construction: Series Wound

Continuous Current(A): 2.5A

Efficiency: IE 3

Model Number: DHLCE

Origin: Mainland China

Output Voltage: 60w

Protect Feature: Waterproof

Torque: 2500

Type: Micro Motor

Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance

voltage: 12v/24v


Material: Aluminum Alloy
Max Power: 60W
Motor: Permanent magnet DC Motor drive;
Voltage: DC24V / DC12V
Standard protection grade: IP54
Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
Note:If you need customized items, pls contact with us.

Model

DHLCE 260A IR

DHLCE 310A IR

DHLCE 360A IR

DHLCE 410A IR

Panel Size

200*200MM

Model

DHLCE 260B IR

DHLCE 310B IR

DHLCE 360B IR

DHLCE 410B IR

Panel Size

160*160MM

152*152MM

Initial Height (MM)

265

315

360

420

Final Height (MM)

540

690

790

720

Stroke Length (MM)

275

375

430

300

Section

3

3

3

2

Voltage

DC24V / DC12V

Speed

4.3MM/S

Load Pull Capacity

1000N

Load Push Capacity

1000N

Operating Temperature

0~40℃

Limit Switch

Built-in

Color

Silver

Material

Body Aluminum ,Panel Iron




Model

DHLCE 270A AL

DHLCE 320A AL

DHLCE 370A AL

DHLCE 420A AL

Panel Size

200*200MM

Initial Height (MM)

275

325

370

430

Final Height (MM)

550

700

800

730

Stroke Length (MM)

275

375

430

300

Section

3

3

3

2

Voltage

DC24V / DC12V

Speed

4MM/S

Load Pull Capacity

1000N

Load Push Capacity

1000N

Operating Temperature

0~40℃

Limit Switch

Built-in

Color

Silver

Material

Body Aluminum ,Panel Aluminum
