SPECIFICATIONS
Brand Name: NONE
Certification: ce,ROHS,CE,CE,ROSH
Color: GRAY,gray
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.25
Efficiency: IE 2
Full-load Current: 0.25A
High-concerned chemical: None
IP Level: IP43
Model Number: IP70
No-load Current: 0.03A
Noise: less then 48dB
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Drip-proof
Torque: Max 150N 15KGS 33.07LBS
Type: Gear Motor
Technical Parameters
Voltage (V) DC 12/24V
No-load speed (mm/s) 4 8 15 30
Load push capacity (N) 100 80 50 20
Load pull capacity (N) 100 80 50 20
Statoc damping (N) 100 80 50 20

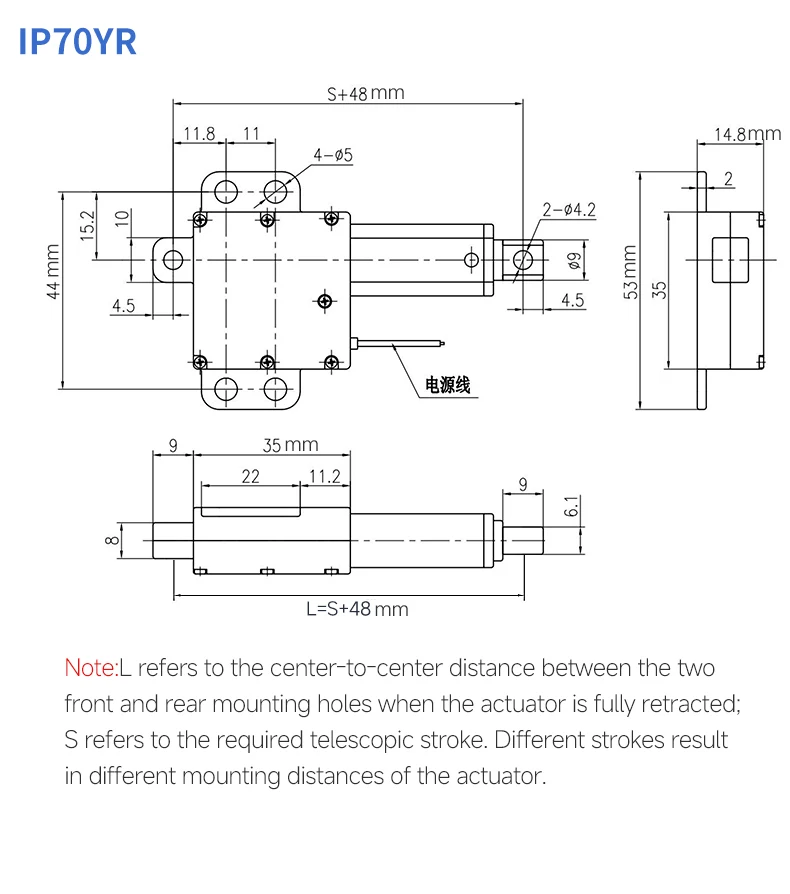

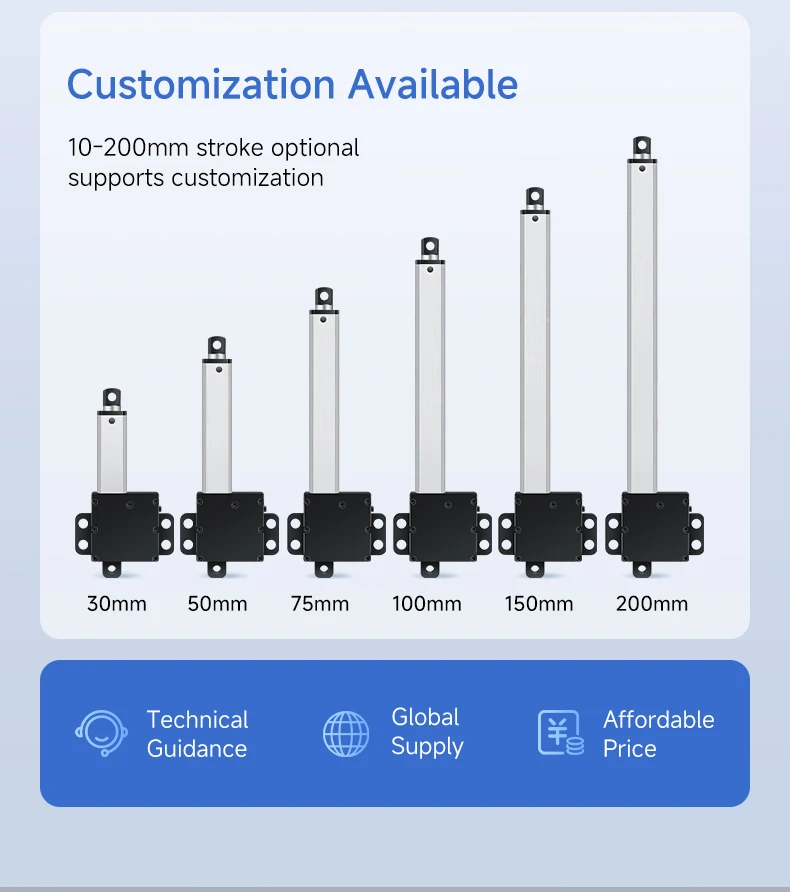

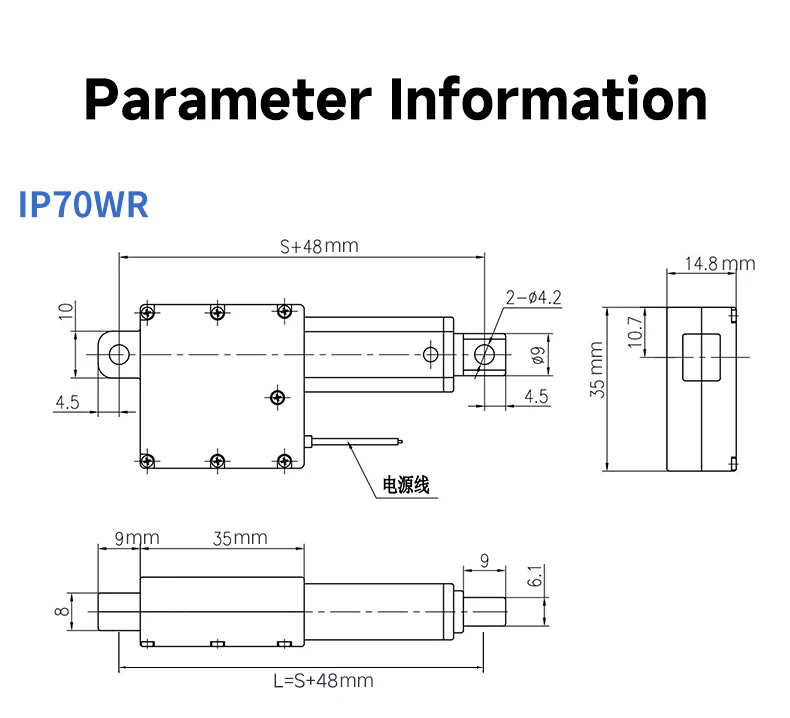

Stroke length (mm) 10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm
Operating temperature -20~65℃
IP Grade IP43
Limit switch Built-in
Operating frequency 10% max 2min continuous use
Inner tube Aluminum tube
Color Silver gray
Lead screw type T type
What's in the box
What's in the box

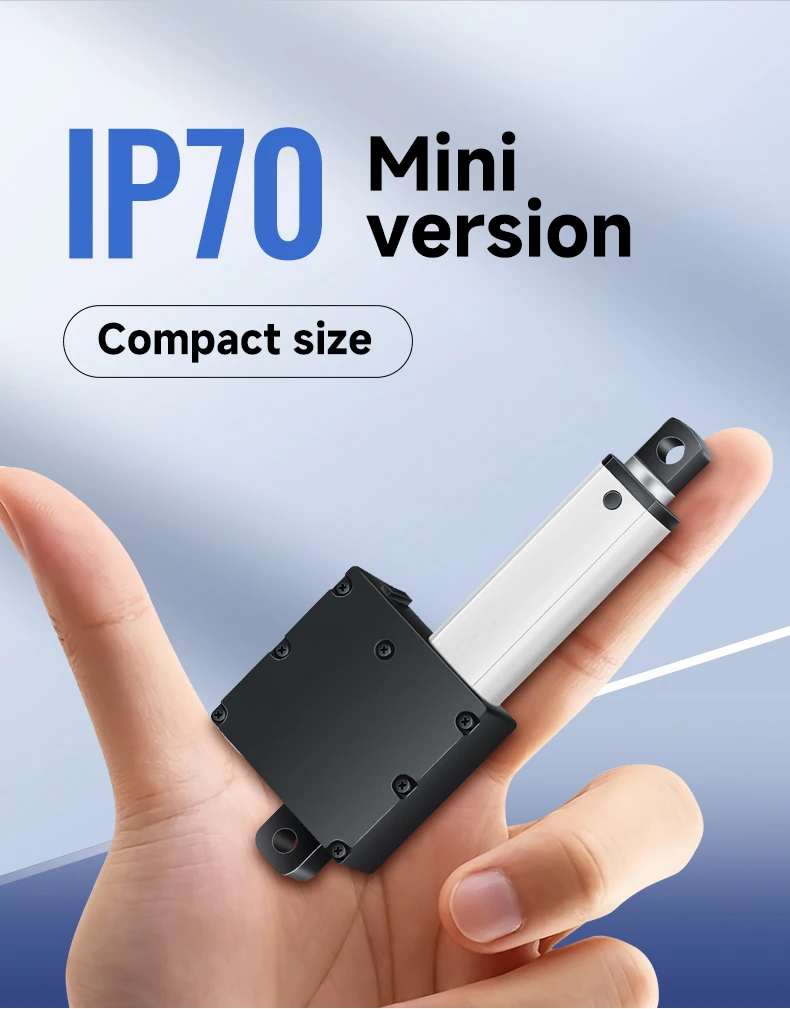

1 x Mini Linear Actuator(As you choose)+2 x Brackets
Why Us?
● Over years we’ve been running, we have much experience in this field, provide customers with high quality and reliable goods.

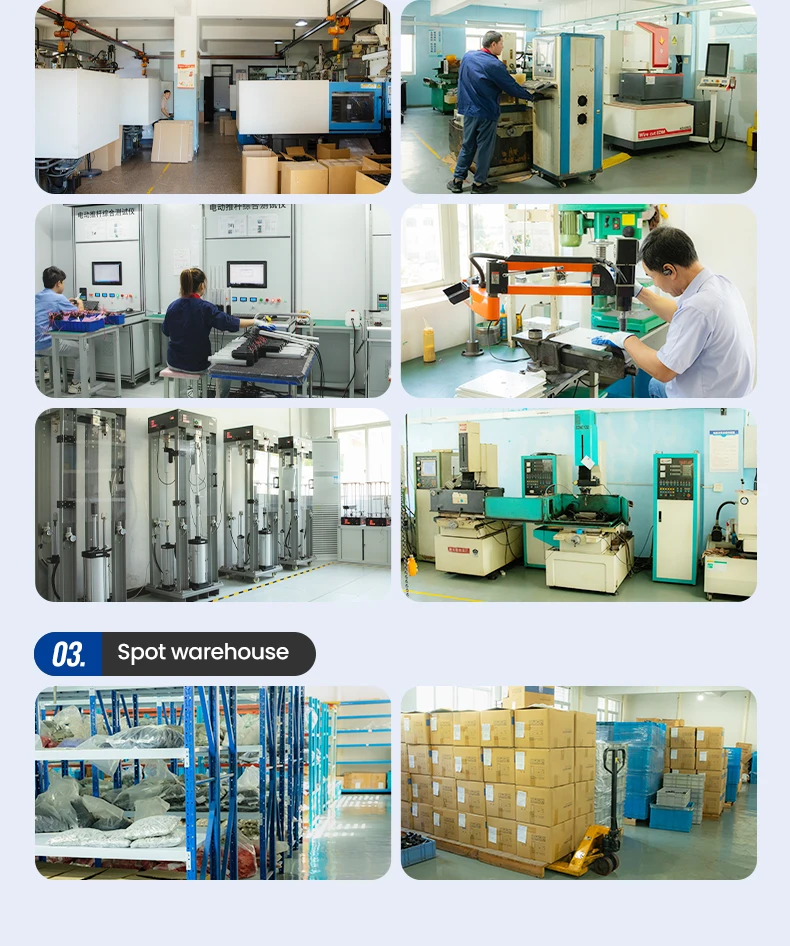

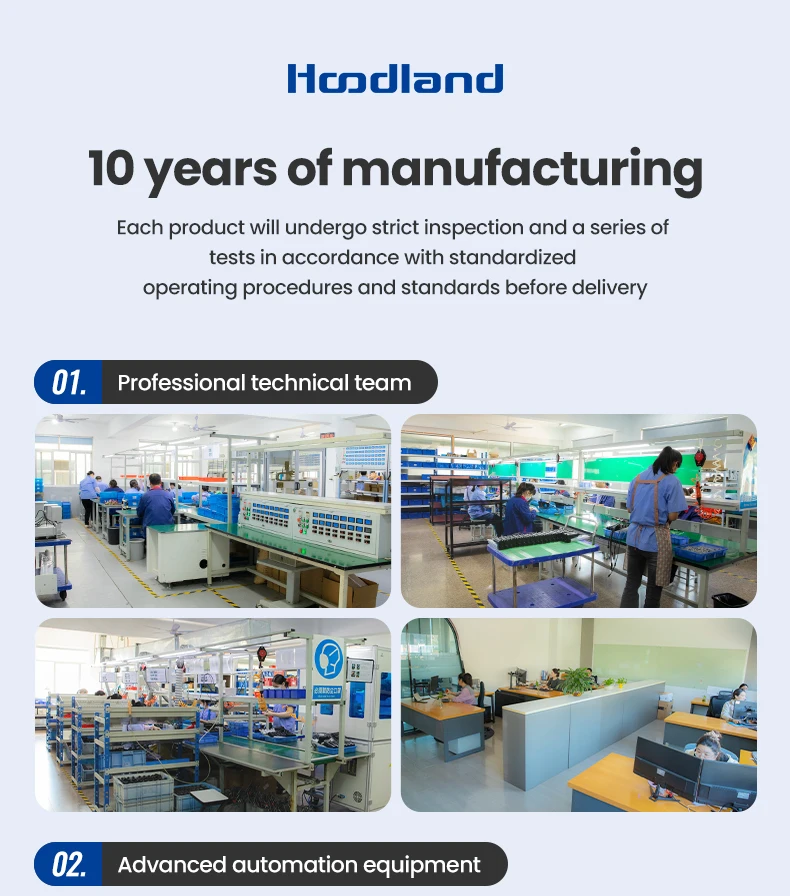

● Our lab is equipped with professional inspection machines, every product will be strictly inspected and undergone a series of tests according to canonical operation specification and standard before delivery.

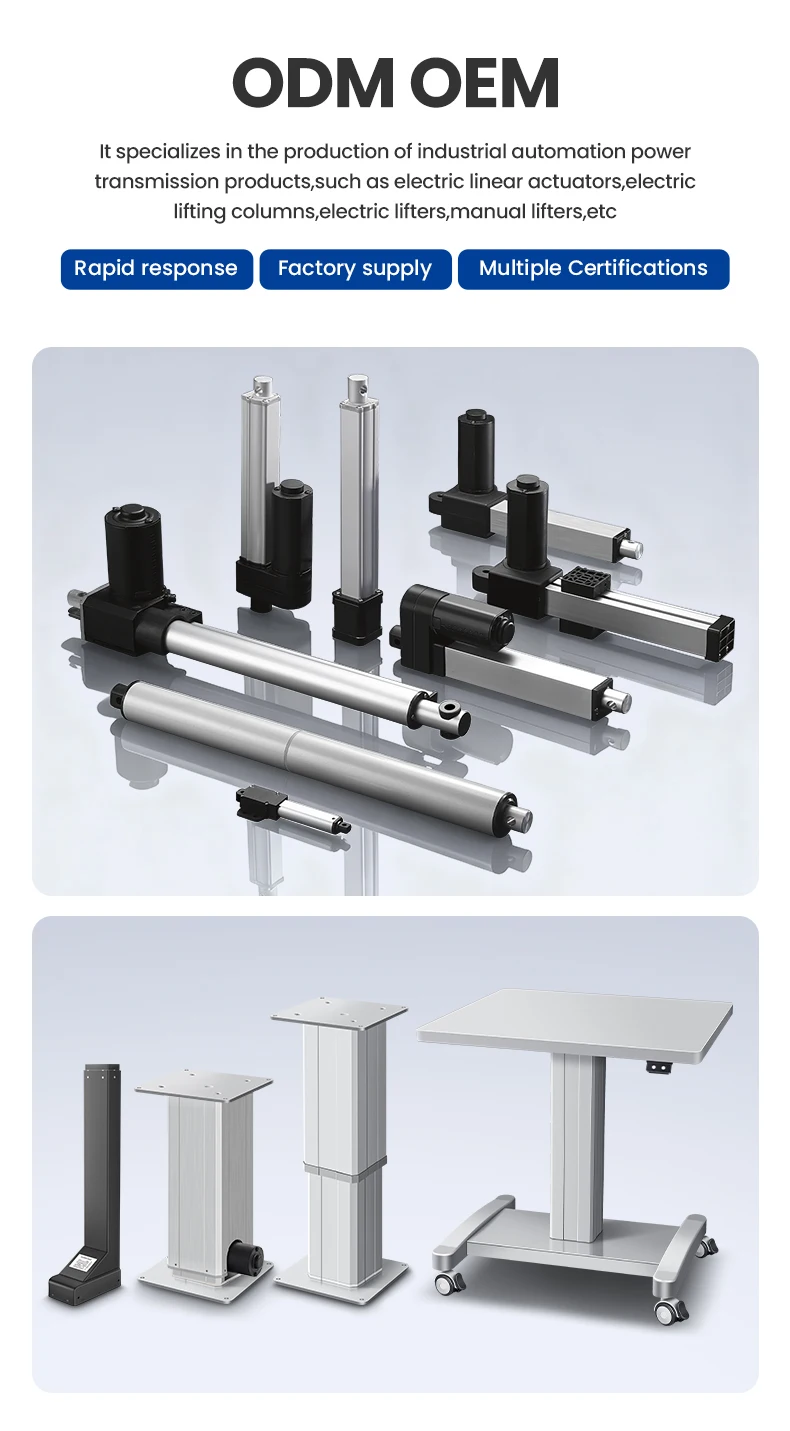

● OEM & ODM service are available.
