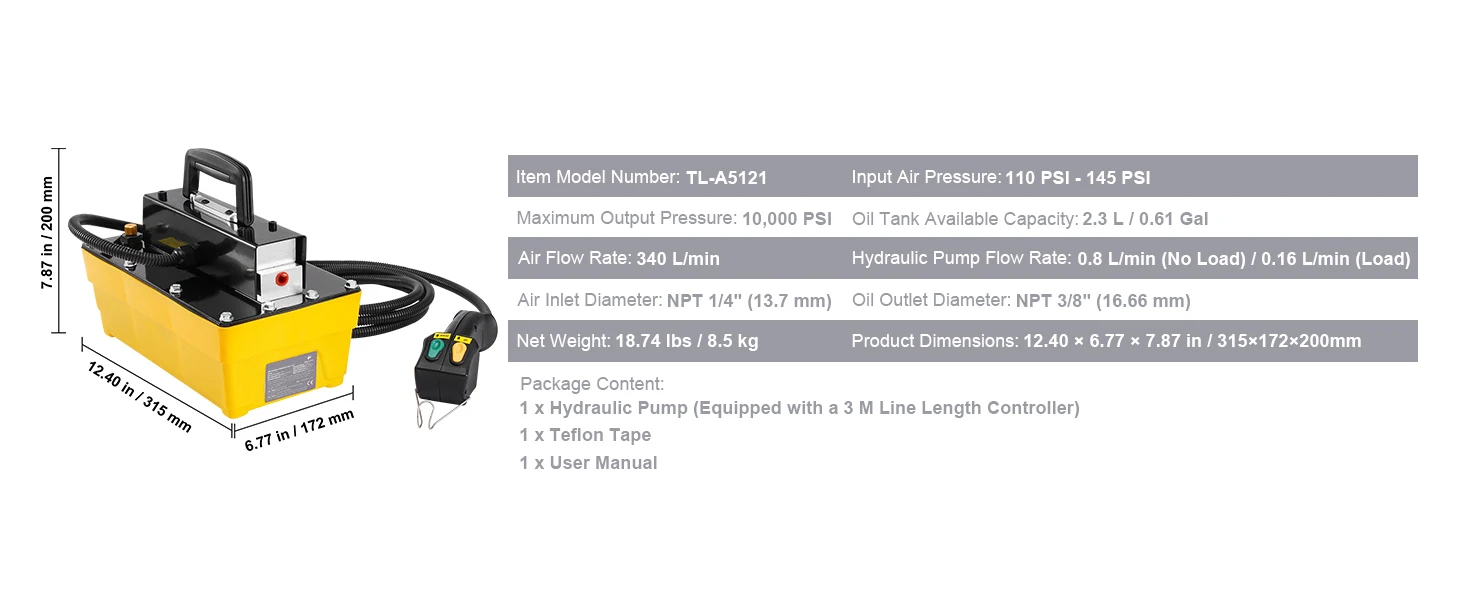

SPECIFICATIONS
Air Flow Rate: 340 L/min
Air Inlet Diameter: NPT 1/4" (13.7 mm)
Brand Name: NONE,succebuy
Certification: CE
DIY Supplies: Electrical
Electronic: No
High-concerned chemical: None
Hign-concerned Chemical: None
Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)
Input Air Pressure: 110 PSI - 145 PSI
Item Model Number: TL-A5121
Maximum Output Pressure: 10,000 PSI
Net Weight: 18.74 lbs / 8.5 kg
Oil Outlet Diameter: NPT 3/8" (16.66 mm)
Oil Tank Available Capacity: 2.3 L / 0.61 Gal
Origin: Mainland China
Product Dimensions: 12.40 x 6.77 x 7.87 in / 315 x 172 x 200 mm

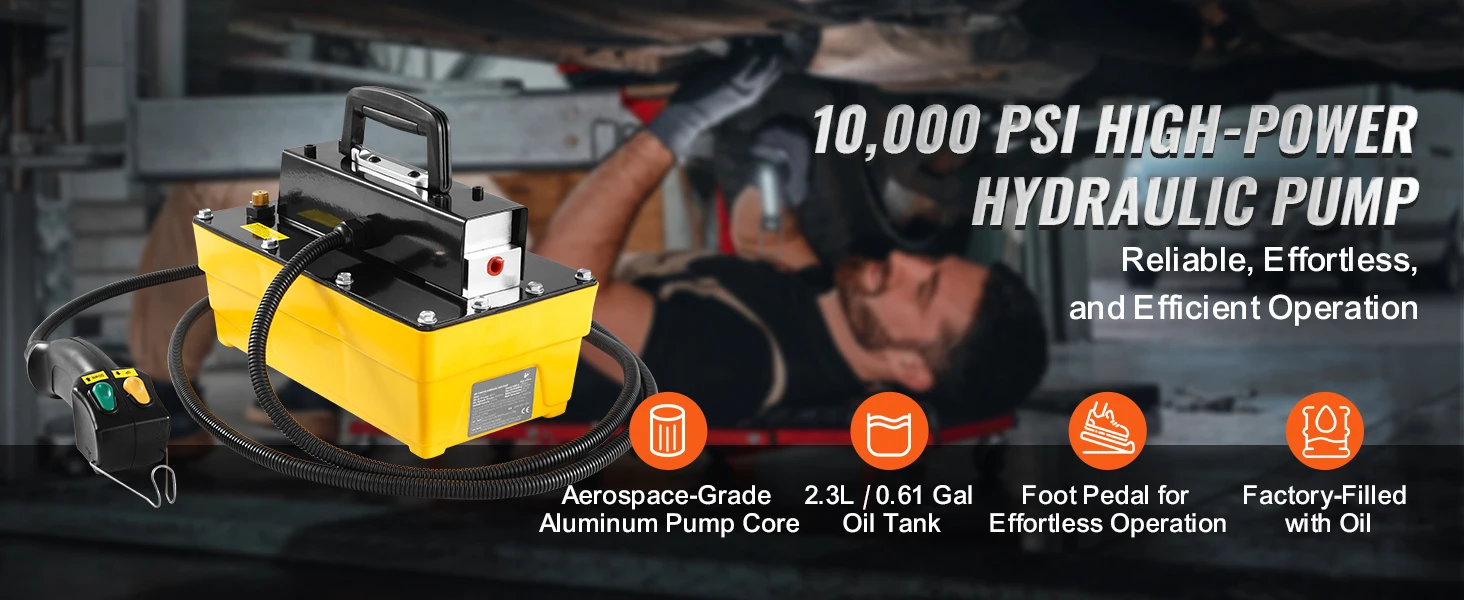

10,000 PSI High Power: Achieve up to 10,000 PSI of hydraulic pressure with an airflow of 340 L/min. This air hydraulic pump offers 0.8 L/min (no load) and 0.16 L/min (load) flow rates, making it ideal for heavy-duty tasks like lifting, pressing, bending, straightening, cutting, assembling, and disassembling.
3-Meter Remote Control: Enjoy the convenience of a 9.84 in / 3 m remote that keeps you secure from hazards. This feature makes operating more accessible and comfortable while allowing quick reactions in emergencies to help avoid accidents.
Factory-Filled with Oil: This air over hydraulic pump comes with a large 2.3 L / 0.61 gal tank factory-filled with hydraulic oil (#13) so you can start working immediately. This feature cuts down on setup time and effort. It includes an air inlet with NPT 1/4 in and a high-pressure output with NPT 3/8 in.
Standard Size for Easy Setup: With an air inlet of NPT 1/4 in and a high-pressure output of NPT 3/8 in, this air hydraulic pump is compatible with standard pneumatic accessories. It easily connects to your existing pneumatic system for hassle-free integration.
Durable and Tough: Made with aerospace-grade aluminum and a high-quality casing, this air hydraulic pump is built to withstand harsh industrial environments. The internal relief valve ensures reliable protection for the hydraulic components under pressure.
