SPECIFICATIONS
Brand Name: succebuy
Certification: CE
Control mode: V/F control and vector control
High-concerned chemical: None
Horsepower: 3/5.5/10HP
Humidity: 0-90% Relative Humidity (without dew)
Input Current: 0-14A, 0-17A, 0-33A, 0-17.5A
Input Frequency: 50/60 Hz
Input Phase: 1 or 3 Phase
Input Voltage: 220V, 110V
Origin: Mainland China
Output Current: 0-14A, 0-17A, 0-33A, 0-17.5A
Output Frequency: 0-1000 Hz
Output Phase: 3 Phase
Output Type: triple
Output Voltage: 0-220V, 0-110V
Power: 2.2/3/4/7.5KW
Type: DC/AC Inverters
Working Temperature: 23~104℉/-5 ~ 40 ℃
Smart Digital Display: Intuitive interface for easy monitoring and control.
Multiple Protection Modes: Safeguards against overloads and other issues.
Powerful Functionality: Adapts to various load types including compressors and fans.
Low-Noise Operation: Designed for quiet and efficient performance.
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Model: H100-4S2-1B
Power: 4 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-17A
Output Current: 0-17A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 5.5 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 5.73 lbs / 2.6 kg

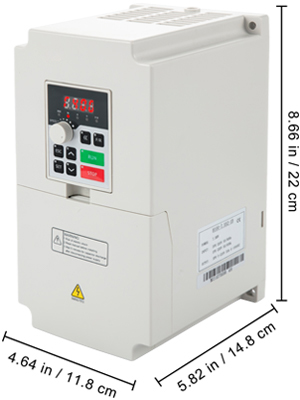

Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
1 x 4 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire
Model: H100-3S2-1B
Power: 3 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-14A
Output Current: 0-14A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 4 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 2.43 lbs / 1.1 kg
Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
1 x 3 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire
Model: H100-2.2C2-1B
Power: 2.2 kW
Input Voltage: 110V
Output Voltage: 0-110V
Input Current: 0-17.5A
Output Current: 0-17.5A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 3 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 2.43 lbs / 1.1 kg
Product Size: 5.9 x 3.54 x 4.6 in / 150 x 90 x 118 mm
1 x 2.2 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire
Model: H100-7.5S2-1B
Power: 7.5 kW
Input Voltage: 220V
Output Voltage: 0-220V
Input Current: 0-33A
Output Current: 0-33A
Input Phase: 1 or 3 Phase
Output Phase: 3 Phase
Input Frequency: 50/60 Hz
Output Frequency: 0-1000 Hz
Horsepower: 10 HP
Working Temperature: 23~104℉/-5 ~ 40 ℃
Humidity: 0-90% Relative Humidity (without dew)
Vibration: Below 0.5 G
Net Weight: 5.73 lbs / 2.6 kg
Product Size: 8.7 x 4.6 x 5.8 in / 220 x 118 x 148 mm
1 x 7.5 KW Variable Frequency Drive Inverter
1 x English Manual
1 x Extension Wire
Smart and Intuitive Display: Featuring a user-friendly digital display and a well-organized control panel, the VFD is easy to operate. Its detachable design allows for convenient remote control, enhancing user flexibility.
Comprehensive Protection Features: The VFD includes a range of protective measures such as overload, fuse, over-voltage, under-voltage, stall, short-circuit, and overheat protection. These safeguards ensure reliable and stable operation in demanding conditions.
Versatile Applications: This variable frequency drive (VFD) is suitable for a wide range of machinery including CNC machines, milling machines, extruders, compressors, pumps, and more. It also supports various speed control requirements for industrial applications like conveyors and mixers.
Powerful Performance: Designed to handle both 1-phase or 3-phase inputs and 3-phase outputs, this VFD supports multiple control methods including V/F control and vector control. It offers advanced settings for frequency, PID control, and high-torque performance at low frequencies, making it ideal for diverse operational needs.
Enhanced Durability: Equipped with advanced PWM control technology, this drive minimizes noise and electromagnetic interference. Its design includes ample space for heat dissipation and a porous shell, extending its operational lifespan.
