SPECIFICATIONS
Brand Name: NONE
Design Pressure(Max): 3.0 Mpa
High-concerned chemical: None
Material: Stainless steel,316L +99.9% Copper
Model: 60 Plates, 40 Plates, 30 Plates
Origin: Mainland China
Product Type: Wort Chillers
Test Pressure(Min): 4.5 Mpa
Type: Plates Heat Exchanger
Product Description
High Thermal Efficiency
Energy Optimized
Robust Construction
Compact Design
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Model: EATB12
Material: 316L +Copper
Ports: 3/4" MNPT
Plate Quantity: 30
Design Pressure(Max):3.0 Mpa
Test Pressure:(Min):4.5 Mpa
Design Temp.(℃): Max +225
Design Temp.(℃): Min -196
Dimension: 7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm
1 x 30 Plate Heat Exchanger
1 x A Pair of Hoops
Model: EATB12
Material: 316L +99.9% Copper
Ports: 3/4" MNPT
Plate Quantity: 40
Design Pressure(Max):3.0 Mpa
Test Pressure:(Min):4.5 Mpa
Design Temp.(℃): Max +225
Design Temp.(℃): Min -196
Dimension: 7.6" x 2.7" x 4.6" /19.4 cm x 7.1 cm x 11.8 cm
1 x Heat Exchanger
1 x A Pair of Hoops
Model: B12-60
Material: 316L +99.9% Copper
Ports: 1/2" BSP FPT
Plate Quantity: 60
Design Pressure(Max):3.0 Mpa
Test Pressure:(Min):4.5 Mpa
Design Temp.(℃): Max +225
Design Temp.(℃): Min -196
Dimension: 7.6" x 2.8" x 6.3" / 19.4 cm x 7.2 cm x 16.1 cm
1 x Heat Exchanger
1 x A Pair of Hoops

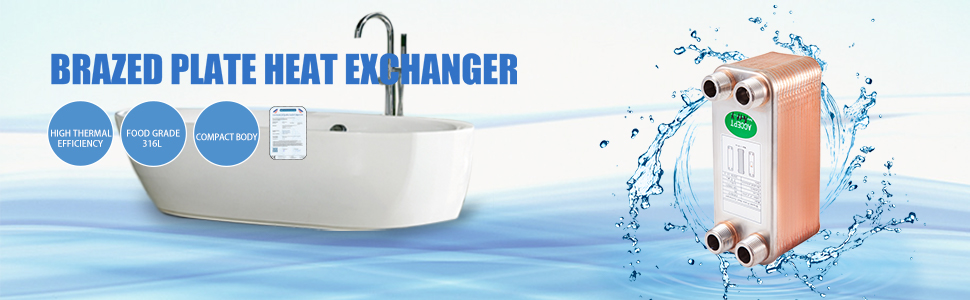

【HIGH THERMAL EFFICIENCY】- Turbulent-flow design moves the two media in opposite directions and creates strong turbulences for superior heat transfer rates and efficiency. Our heat exchanger series have been certificated by CE. Dimension: 7.8" x 3" x 3.7" / 20 cm x 7.8 cm x 9.5 cm.
【ENERGY OPTIMIZED】 - This heat exchanger stainless can heat water to the preset temperature, which is super energy-saving with no electricity consumption and no oxygen consumption.
【ROBUST CONSTRUCTION】- This 30 plate heat exchanger features 316L stainless steel sheets, which are brazed together at the edges and the matrix of contact points for a reliable and rugged part to form a durable, integral piece that can withstand high pressure and temperature. Four thickened MNPT ports for your easier installation.
【COMPACT DESIGN】- Corrugated plate design of this plate chiller wort allows for substantially smaller build and footprint at an equivalent or better performance compared to other heat transfer devices – resulting in significant space savings.
【HIGHLY VERSATILE】-This heat exchanger beer offers the highest level of thermal efficiency and durability in a compact & lightweight unit, ideal for industrial oil cooling, refrigerant evaporators, and condensers, residential and light commercial HVAC hydronic systems.
Friendly Note for Installation
Vertical installation is recommended to minimize sediment build-up and reduce maintenance.
For any type of project, installing a Y-strainer at the heat exchanger inlet is recommended to reduce fouling and extend the unit's lifespan.
Connect the pipes in a manner where liquids move in a counter-flow direction, which will maximize the heat transfer.
