SPECIFICATIONS
Brand Name: SucceBuy
Can test pressure: ≥35.0MPa (350 bar)
Certification: CE
For: 6190/6200/6170 Diesel Engine
Fuel tank capacity: 4000mL
High-concerned chemical: None
Max Measuring Range: 200 PSI & Above
Measuring ranges: 0 to 600 bar & 0 to 8000 PSI
Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5
Oil Cup: 0.8L
Origin: Mainland China
Plunger Hole: 2/5 inch
Pressure: 0-60Mpa
Product Size: 5x4.5x16.5 in / 12.7x11.4x41.9 cm
Type: Diesel Fuel Injector Nozzles Tester 60MPa
Widely used in: the calibration of fuel injectors of diesel engines of automobiles and tractors
Durable Premium Aluminum Construction
Wide Measuring Range for Versatility
Accurate and Reliable Test Results
Comes with Standard Accessories for Convenience
Color: Black
Measuring ranges: 0 to0600 bar & 0 to 8000 PSI
Pressure range: 60Mpa (600 bar)
For 6190/6200/6170 Diesel
Can test pressure: ≥35.0MPa (350 bar)
Fuel tank capacity: 4000mL
Oil Cup：0.8L
Pressure: 0-60Mpa
Plunger Hole: 2/5''
Nozzle connector: M14X1.5-M14X1.5, M14X1.5-M12X1.25, M14X1.5-M12X1.5
Applicable models: Diesel engine vehicle
Packing size: 19X11X7inch/48X26X17cm
G.W.: 14lbs/6 kg

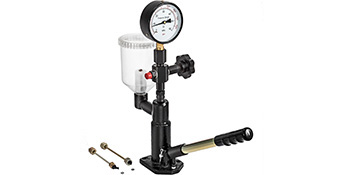

1 X Diesel Injector Nozzle Tester
Durable Aluminum Construction: Crafted from high-quality aluminum through a precise casting process, ensuring enhanced durability and rigidity. Features a plastic fuel cup for fuel containment and a stainless pressure gauge for accurate air pressure detection.
Extensive Measurement Range: Equipped with a precision dual-scale gauge, capable of measuring values from 0-600 bar/0-8000 psi, with a maximum test pressure of 60M Pa (100 mm Dial, 3/8" BSP thread). Includes a transparent 0.8L fuel measuring cup with a filter for conducting various injector nozzle tests.
Versatile Testing Capabilities: Capable of performing essential tests such as injection nozzle opening pressure, leakage, chattering, spray pattern inspection, and atomization. Ideal for comprehensive examination of automotive diesel injectors due to its multifunctional testing capabilities.
Complete Set of Accessories: Comes with essential components including a 60MPa pressure gauge, handle, high-pressure pipes, A and B type connectors with metric size nuts (12 X 1.5) and (14 X 1.5), 0.8L fuel cup with a 5-micron Bosch filter, piston/element, delivery valve, and extra oil pipes for testing versatility.
Wide Range of Applications: Suitable for calibrating fuel injectors in diesel engines of automobiles and tractors. Compatible with various types of diesel injectors, excluding Common Rail Diesel Injectors (CRDI), making it a versatile tool across different diesel engine applications.
