SPECIFICATIONS
Brand Name: succebuy
Center Height: 3-15/16" (10 cm),4"/100mm
Certification: CE
Chuck Diameter: 4"/100mm
Headstock Dimensions: 9.5" x 7.5" x 4.92" ( 24 x 19 x 12.5 cm)
Headstock Taper: MT2
High-concerned chemical: None
Material: HT200
Net Weight: 50.7 lbs (23 kg)
Number of Jaws: 3
Origin: Mainland China
Power: Manual
Power Source: Manual
Reduction Ratio: 1:40
Swing: 4.92" (12.5 cm)
Tailstock: MT2
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)
Type A: With 5'' 3 Jaw Chuck
Type B: With 4'' 3 Jaw Chuck
Adjustable Angle
Solid Construction
Clear & Accurate
MT2 Tailstock Adjustable
Rich Dividing Head Set
Premium Tough Quality
Incredibly Low Prices
Fast & Secure Delivery
30-Day Free Returns
24/7 Attentive Service
Chuck Diameter: 4"/100mm
Center Height: 4"/100mm
Material: HT200
Reduction Ratio: 1:40
Tailstock: MT2
1 x Dividing Head
1 x Tailstock
Some Related Accessories
Swing: 4.92" (12.5 cm)
Center Height: 3-15/16" (10 cm)
Headstock Taper: MT2
Net Weight: 50.7 lbs (23 kg)
Headstock Dimensions: 9.5" x 7.5" x4.92" ( 24 x 19 x 12.5 cm)
Tailstock Dimensions: 3.5" x 6" x 4" (9 x 15 x 10 cm)
1 x Dividing Head
3 x Dividing Plates
1 x Tailstock
1 x 125 mm 3-Jaw Chuck
——With 4In 3-Jaw Chuck

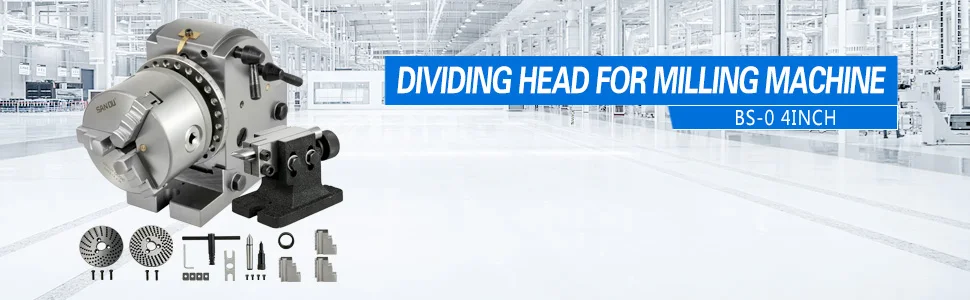

【ADJUSTABLE DIVIDING HEAD】- The semi-universal dividing head features 4" 3-jaw chuck, Spindle Hole Diameter: 18mm. The headstock is adjustable from the horizontal position to 90 degrees upward. Center Height: 4"/100mm. Free 3 more jaws for 4" chuck.
【SOLID CONSTRUCTION】- Made from HT200 to be a long life. The rigid frame provides high accuracy with little backlash for a smooth rotation. Reduction Ratio: 1:40.
【CLEAR & ACCURATE】- Laser engraving scales. The quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. One circle for 360 degrees, one scale stands for 1 degree.
【MT2 TAILSTOCK ADJUSTABLE】- Huge live center for heavy-duty workpieces. Ball-bearing precision; turns smoothly. Tailstock: MT3. One free dead center.
【RICH DIVIDING HEAD SET】- 3 dividing head index plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
——With 5In 3-Jaw Chuck：
Solid Cast Iron Construction: Swing:4.92"/125 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.
