SPECIFICATIONS
Battery Included: Yes
Brand Name: UNI-T
Certification: CE,FCC,RoHS
Color palettes: 7
Display Size: 2.0 - 3.9 Inches
Hi/Lo temperature alarm: Icon,LED flashlight
High-concerned chemical: None
IP rating: IP65
IR resolution: 256X192Pixels
Image modes: Thermal,Visual image,Fusion,PIP
Maximum temperature: 550 ℃
Minimum temperature: -20 ℃
Model: UTI260A
On screen analyzer: 3 Points
Origin: Mainland China
PC software analysis: Yes
Power Type: Rechargable lithium battery
Style: Handheld
Thermal camera Model: UTI260B Plus
Thermal pixels: 256*192
UNI-T Model: UTI260B
Visible light pixel: 2 million(UTI165B+ and UTI260B+)
Water leak detector: Thermographic camera

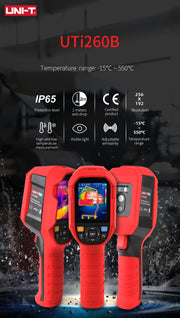

UTi260B UTI260A Thermal Imager
It is cost effective and with a wide temperature range: -20℃~550℃. It has higher IR resolution: 256×192 pixels than other models, and includes 7 color palettes and four display modes: thermal, visual image, fusion, and picture in picture. It is also user friendly and rugged enough to pass IP65 and 2m drop test.
Technical Parameter
1.Temperature measurement range: -15℃ ~ 550℃/(5℉~1022℉)
2.Temperature measurement accuracy; ±2℃/±2% whichever is greater
3.IR resolution: 256 x 192 (49152)
4.Visible light lens: 640 x 480(Only UTI260B)
5.Image mode: thermal, thermal fusion, picture-in-picture, visible light
6.Seven color palettes: white hot, black hot, iron red, lava, rainbow, high contrast rainbow, red hot
7.In addition to the center point, 3 temperature measurement points can be customized, including center point temperature measurement, high and low temperature tracking and key area temperature measurement (ROI)
8.PC analysis software, real-time image transmission
9.LED fill light, LED alarm
10.IP65 protection level, 2-meter drop test
UTI165B+ UTi260B+ Thermal Imager
UTI165B+ UTi260B+ Handheld Thermal Imager equips wide temperature measurement range Iand multiple image modes for different imaging requirements, PC software and mobile APP for images analysis and report generating, meanwhile, real-time image transmission is supported.
Features
● UTI260B+ IR resolution: 256×192
UTI165B+ IR resolution: 160×120
● UTI260B+ Super Resolution: 512 x 384
UTI165B+ Super Resolution: 320 x 240
● Temperature measurement range: -20℃ to 550℃
● 2.8” TFT display screen (320×240 Pixels)
● T-Mix Dual-light Fusion
● Equips Professional PC Analysis Software
● WIFI/Equips Mobile App (iOS & Android)
● Digital camera resolution: 200W
● IP65 Rating
● 2m Drop-Proof
Model |
UTi260A |
UTI260B |
UTI165B+ |
UTI260B+ |
Screen size |
2.8“ |
2.8“ |
2.8“ |
2.8“ |
Infrared resolution |
256x192 |
256x192 |
160x120 |
256x192 |
Temperature |
-20℃~ 400℃ |
-20℃~ 550℃ |
-20℃~ 550℃ |
-20℃~ 550℃ |
Accuracy |
The maximum value is taken from 2℃ or ±2% |
|||
Emissivity |
0.95 (default), adjustable from 0.01 to 0.99 |
|||
Visible light pixel |
/ |
640x480 |
2 million |
2 million |
Swatches |
White heat/Black heat/ Iron red/Lava/ Rainbow/Red-hot High-contrast rainbow |
|||
Viewing angle |
56°(H)*42.2°(V) |
56°(H)*42.2°(V) |
40°(H)*30°(V) |
56°(H)*42°(V) |
IFOV |
3.8mrad |
3.8mrad |
4.62mrad |
3.75mrad |
Focusing mode |
No focusing required |
|||
Sensitivit |
<50mK |
|||
Frame |
≤25Hz |
|||
Unit |
Celsius/Fahrenheit |
|||
Dispiay |
Center point/high temperature tracking and region of interest (ROI) |
Center point/high and low temperature tracking |
||
High and low temperature alarm |
LED flashing/ screen alarm |
LED flashing / screen alarm/buzzer |
||
Image mode |
Thermal imaging |
Thermal imaging/ visible light/PIP/fusion |
Thermal imaging/ visible light/T-Mix/fusion |
|
Picture format |
BMP |
JPG |
||
Super-resolution |
/ |
√ |
||
WIFI |
/ |
|||
Mobile APP |
/ |
√ |
||
PC analysis software |
√ |
|||
Real-time image transmission |
√ |
|||
LED lighting |
√ |
|||
Storage |
32GB Micro SD card |
|||
USB communication |
Type-C USB |
|||
Languag |
Chinese/English |
|||
IP grade |
IP65 |
|||
Drop Test |
2m |
|||
Battery |
3.7V 5000mAh rechargeable lithium battery |
|||
Size |
237*75.5*86mm |
|||
Weight |
520g |
|||
