SucceBuy 10000PSI Air Hydraulic Pump 0.42 Gal Reservoir Treadle Foot Pump Automobile Repair Frame Machine & Hydraulic Press
SPECIFICATIONS
Air Flow Rate: 340 L/min
Air Inlet Diameter: NPT 1/4" (13.7 mm)
Brand Name: NONE
Certification: CE
High-concerned chemical: None
Hydraulic Pump Flow Rate: 0.8 L/min (No Load) / 0.16 L/min (Load)
Input Air Pressure: 110 PSI - 145 PSI
Item Model Number: TL-A5102
Maximum Output Pressure: 10,000 PSI
Net Weight: 17.64 lbs / 8 kg
Oil Outlet Diameter: NPT 3/8" (16.66 mm)
Oil Tank Available Capacity: 1.6 L / 0.42 Gal
Origin: Mainland China
Product Dimensions: 10.31 x 5.35 x 7.32 in / 262 x 136 x 186 mm

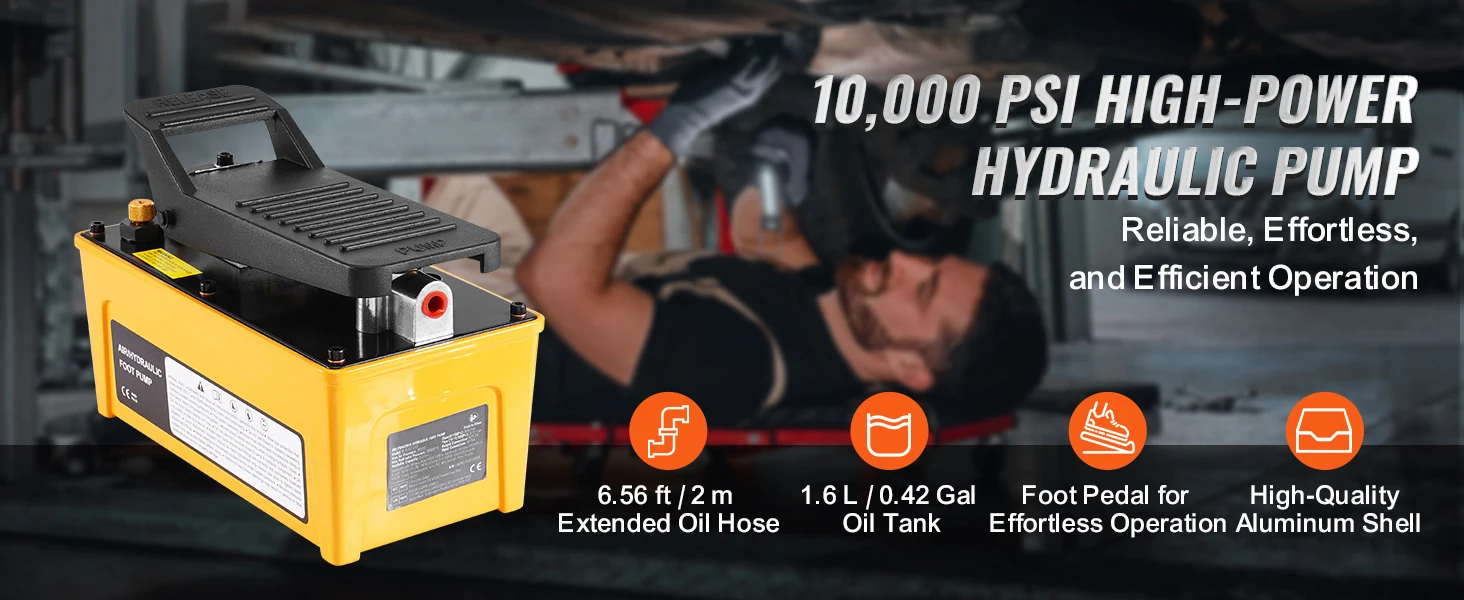

Heavy-Duty 10,000 PSI Air Hydraulic Pump - Built for Performance
High Pressure, High Efficiency
Experience unmatched power with our 10,000 PSI Air Hydraulic Pump. Designed for heavy-duty applications, this pump boasts a rugged exterior, pre-filled hydraulic oil (#13), and a long oil hose for extended reach. Its intuitive controls and stable base ensure easy operation and reliability for tough jobs. Whether in the workshop or on-site, this pump is engineered for superior performance and durability.
High-Pressure Output Pre-Filled Hydraulic Oil Extended Reach Smooth Pedal Operation Built to Last
Key Features

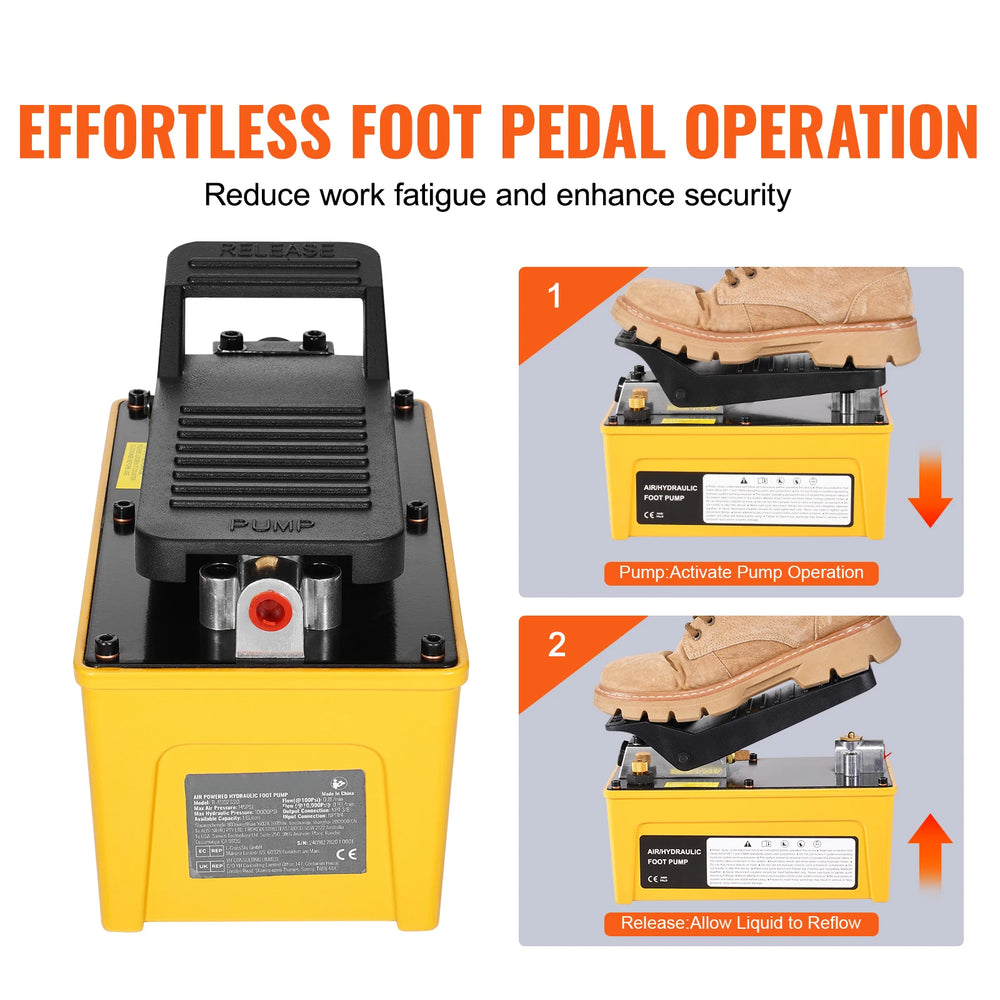

Effortless Foot Control: Operate the pump easily with its foot-activated design. Simply press to build pressure and release for a quick return. Pre-filled with hydraulic oil, it’s ready to use right away, simplifying your tasks and boosting efficiency.
High-Pressure Performance: Generate up to 10,000 PSI hydraulic pressure with an airflow of 340 L/min. Flow rates of 0.8 L/min (no load) and 0.16 L/min (load) make it perfect for tasks like lifting, bending, and cutting.

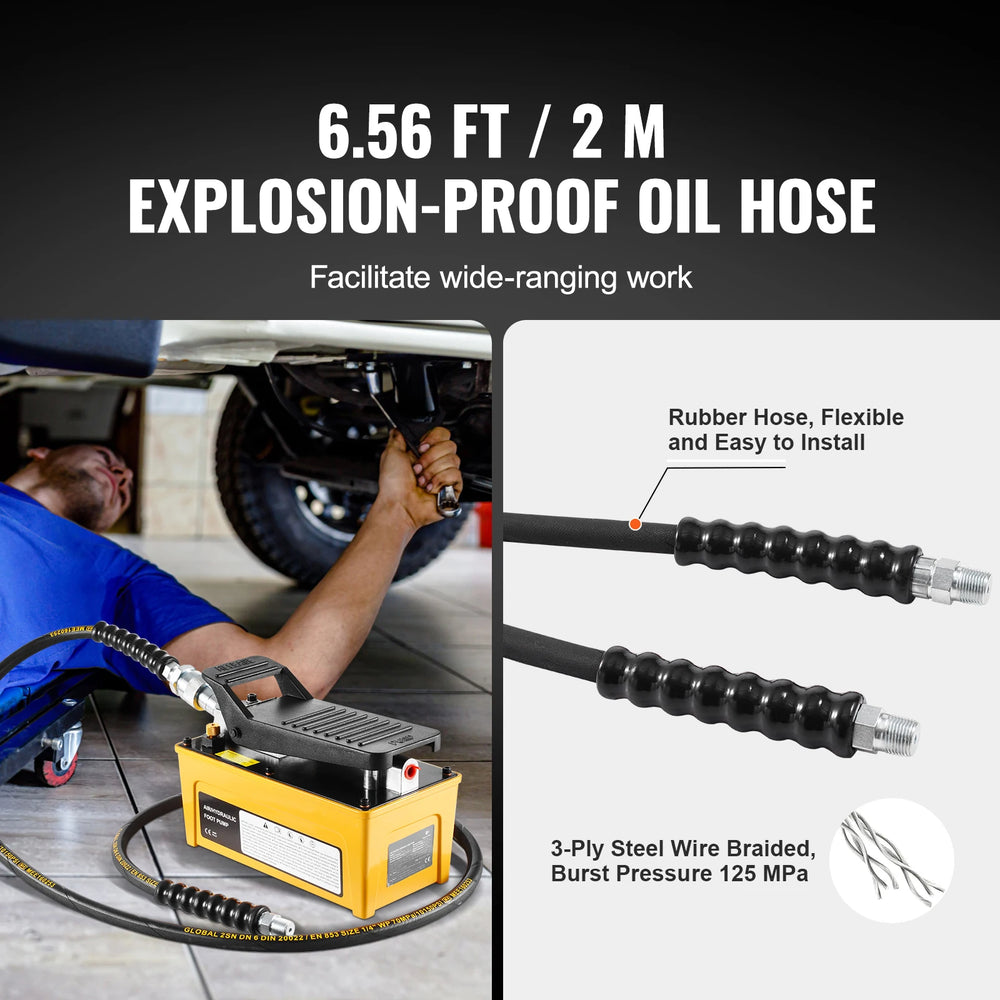

Reinforced Oil Hose: Comes with a 6.56 ft / 2 m durable rubber hose, strengthened by three layers of steel wire. It withstands pressures up to 125 MPa and ensures secure, leak-free operation for extended distances.

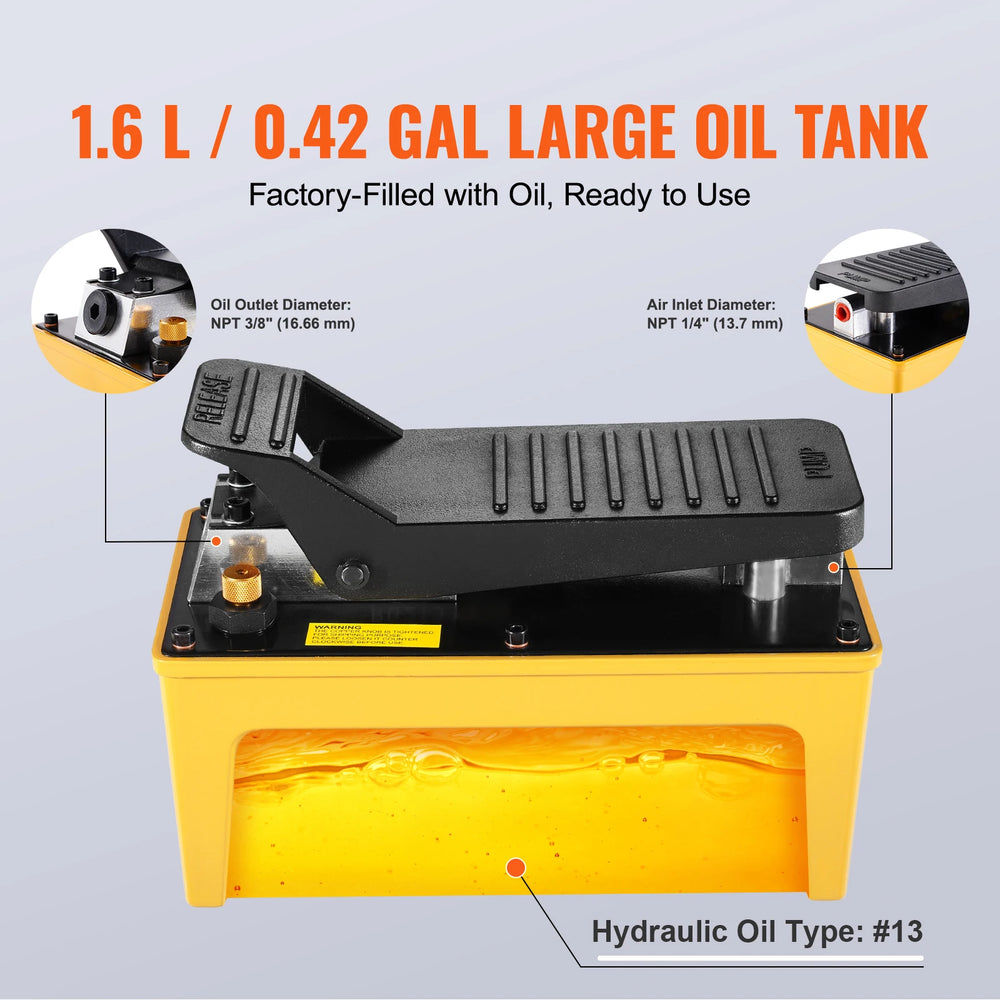

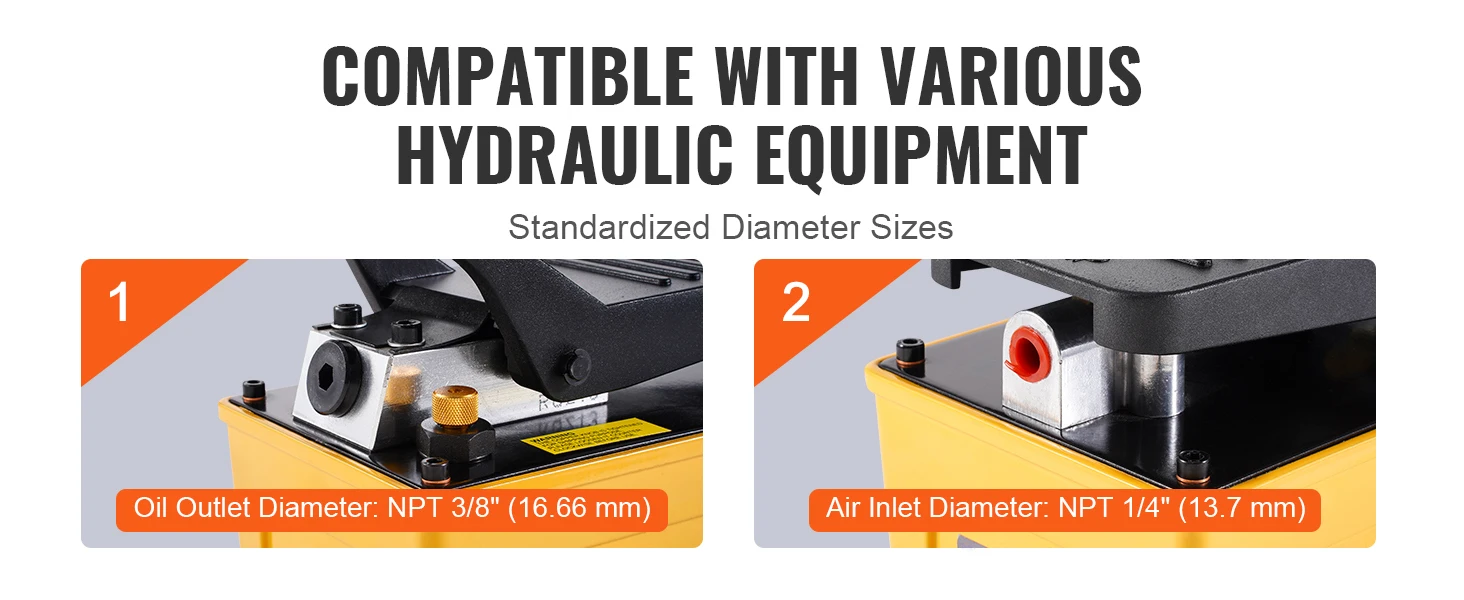

Pre-Filled Hydraulic Oil: Features a 1.6 L / 0.42 gal tank pre-filled with hydraulic oil (#13), cutting down preparation time. Equipped with NPT 1/4 in air inlet and NPT 3/8 in high-pressure outlet for immediate use.
Built for Tough Conditions: Constructed from aerospace-grade aluminum with a rugged casing, this pump is designed to handle demanding industrial settings. An internal relief valve protects components and ensures long-lasting performance.
Steady & Stable Design
Equipped with two screw holes for secure installation, this pump ensures stability during operation, eliminating vibrations for a more efficient workflow.

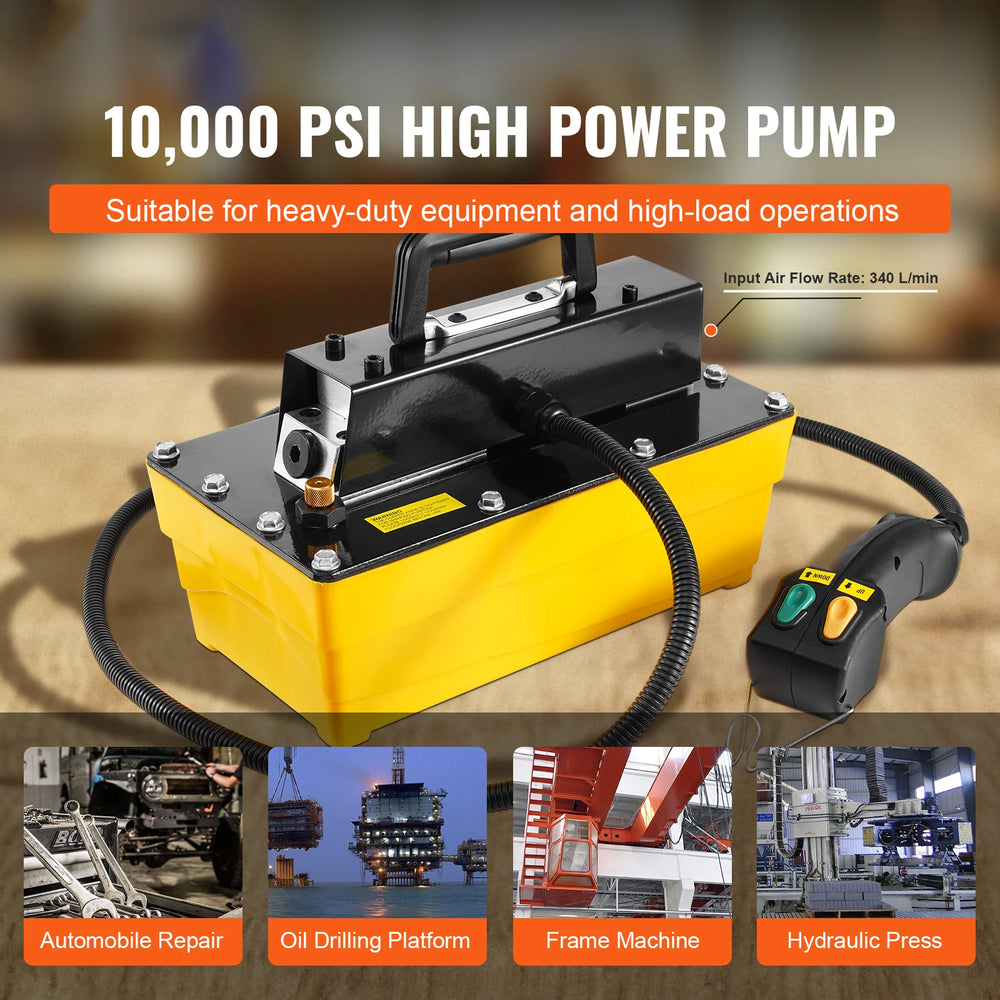

Exceptional 10,000 PSI Power
Delivering an impressive 10,000 PSI, this air hydraulic pump provides reliable high-pressure performance. Its robust design minimizes effort and is perfect for tasks requiring a powerful hydraulic boost without complications.

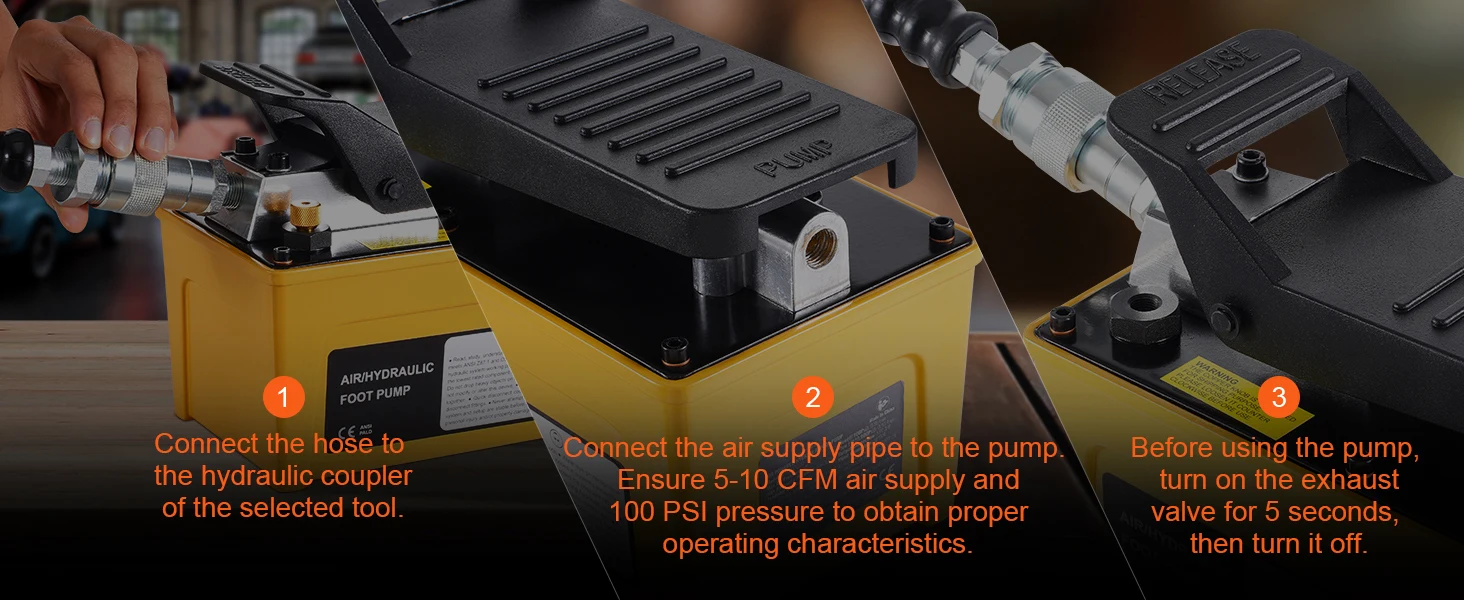

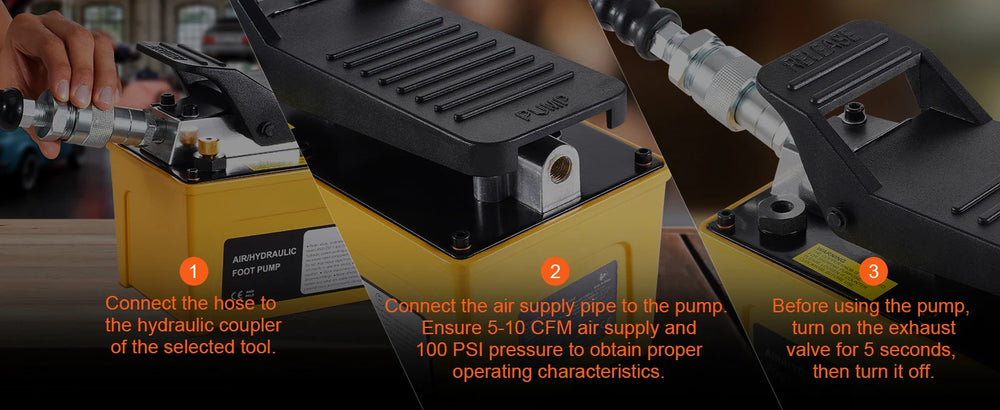

Quick Installation Process
Setting up is a breeze with just three steps. Simply open the air vent for five minutes before use, then close it to ensure smooth and consistent performance.

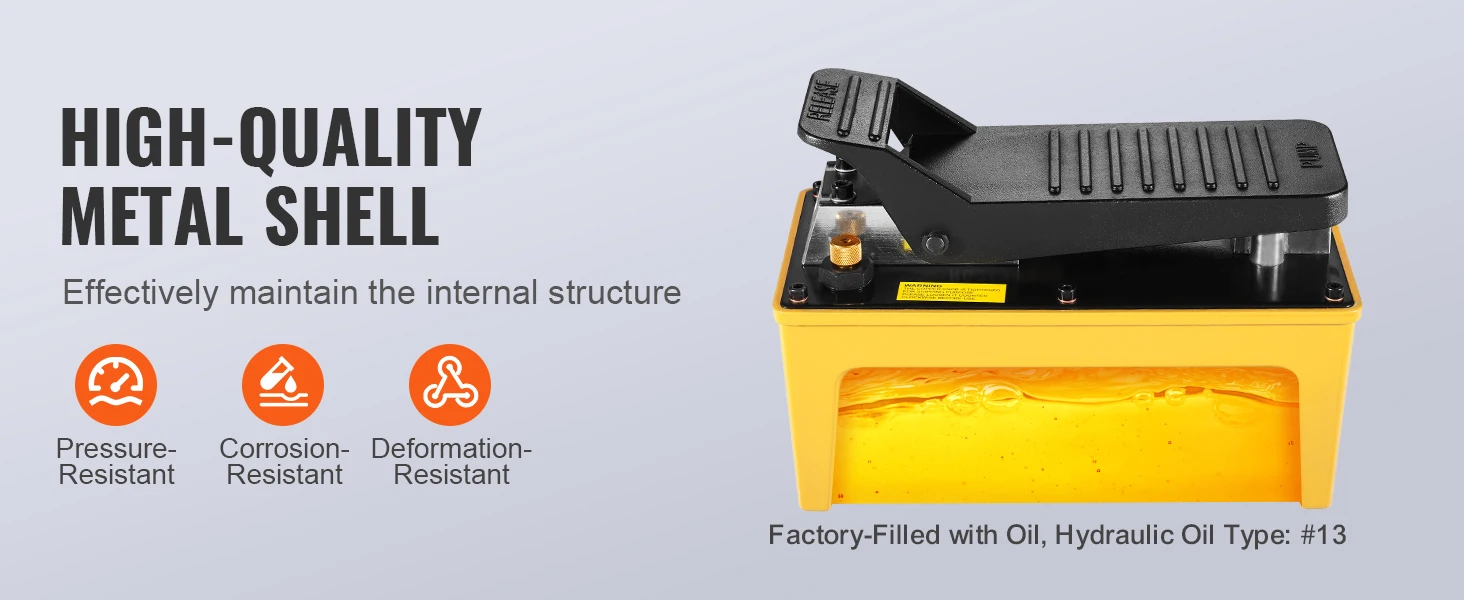

Durable Protective Shell
The pump's rugged exterior safeguards internal components, ensuring resistance to pressure, corrosion, and deformation. Pre-filled with hydraulic oil (#13), it offers efficient and long-lasting hydraulic functionality.

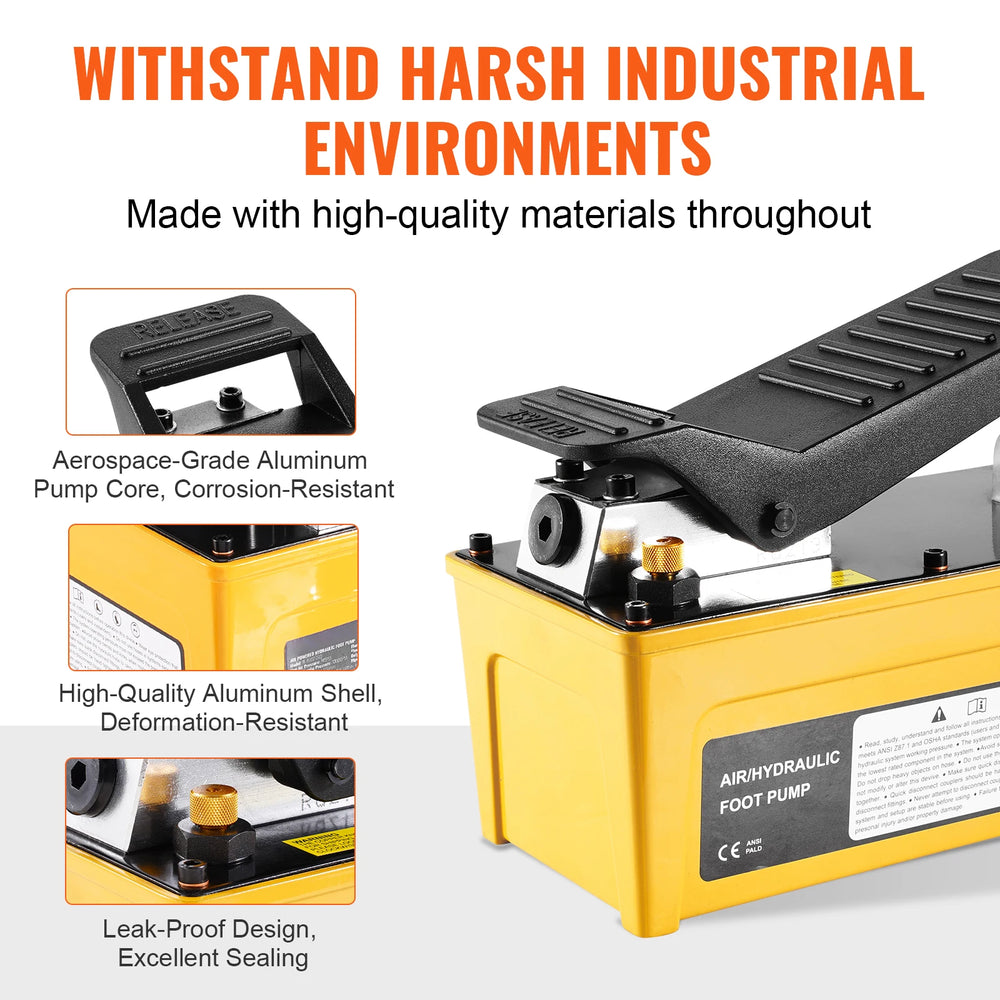

Designed for Tough Environments
Constructed with an aerospace-grade aluminum pump core and a high-quality outer shell, this pump is built to endure demanding industrial conditions. Its internal relief valve prevents pressure overload for dependable operation.
Simplified Operation
Operate the pump effortlessly with its intuitive controls. Use ""Pump"" to activate and ""Release"" for a smooth return flow, giving you precise control over your hydraulic system.

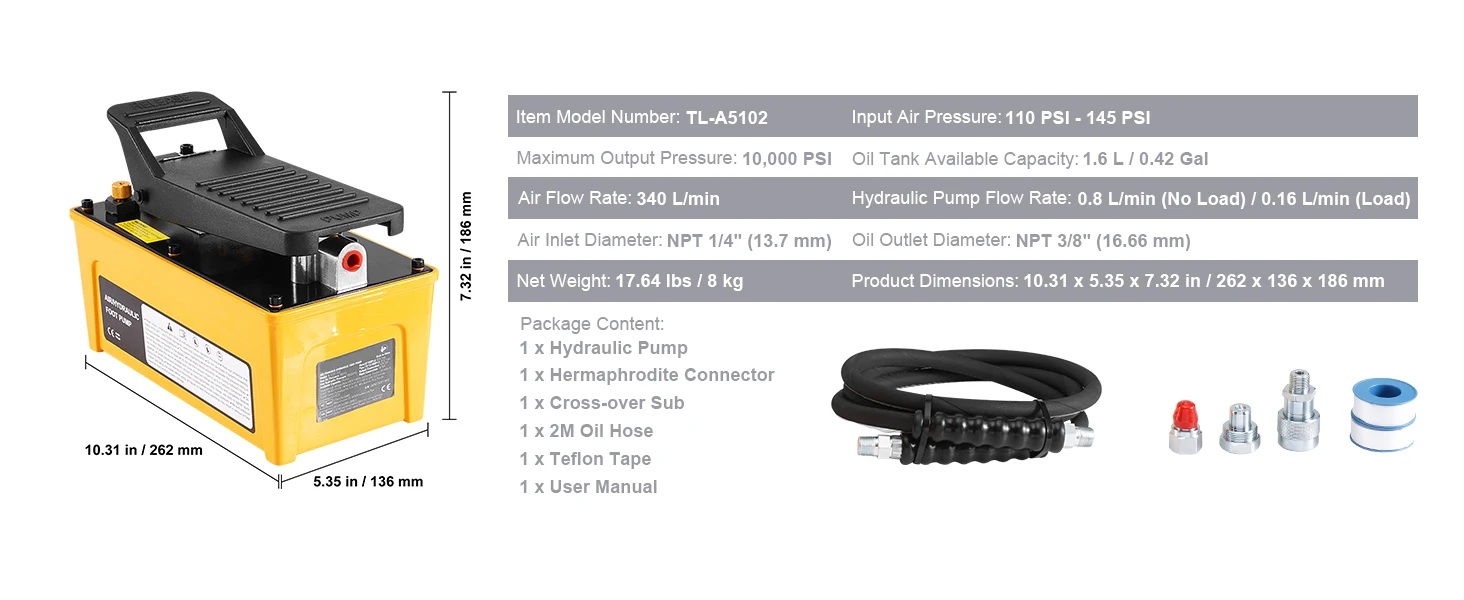

Specification
Maximum Output Pressure: 689 Bar (10,000 PSI) Product Dimensions: 262 x 136 x 186 mm (10.31 x 5.35 x 7.32 inches) Item Model Number: TL-A5102 Hydraulic Pump Flow Rate: 0.8 L/min (No Load), 0.16 L/min (Under Load) Air Flow Rate: 340 L/min Net Weight: 8 kg (17.64 lbs) Air Inlet Diameter: 13.7 mm (NPT 1/4"") Oil Tank Capacity: 1.6 L (0.42 Gal) Oil Outlet Diameter: 16.66 mm (NPT 3/8"") Input Air Pressure: 7.6 - 10 Bar (110 - 145 PSI)/li>
Package Content

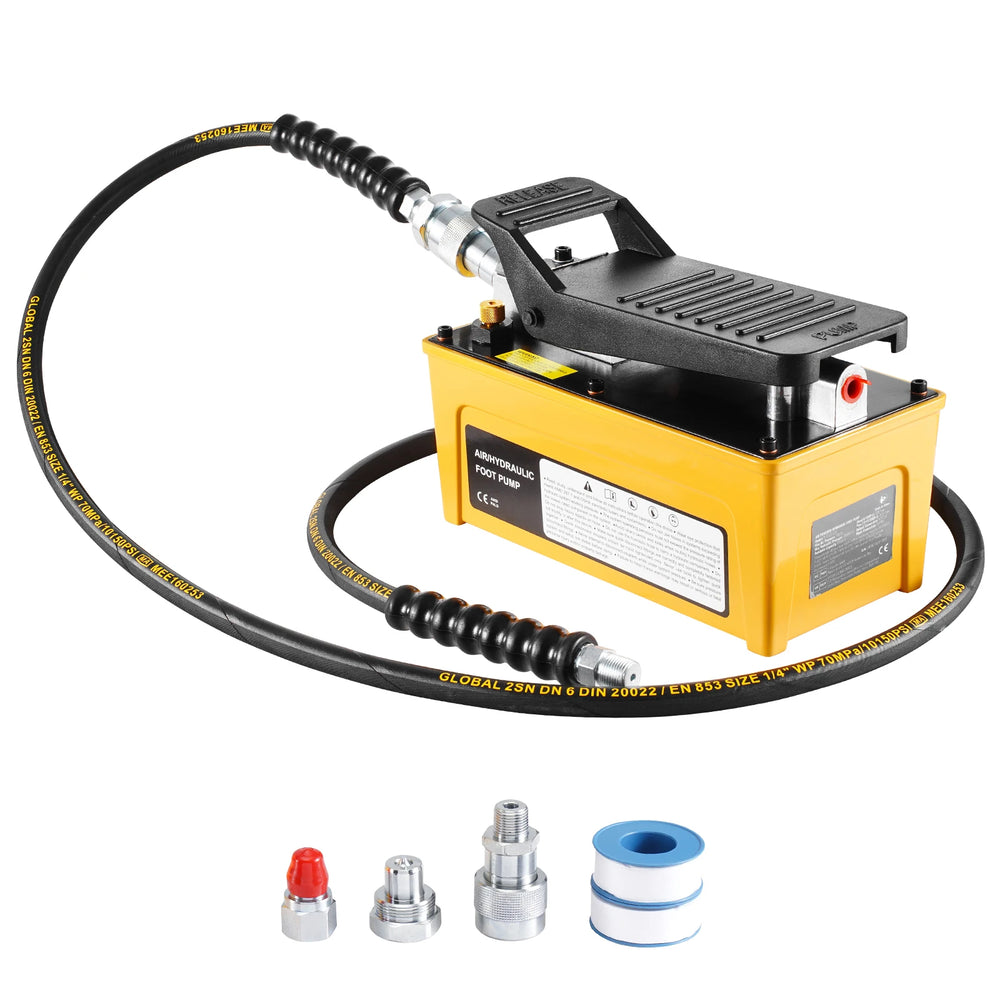

1 x Hydraulic Pump 1 x 2M Oil Hose 1 x Cross-over Sub 1 x Teflon Tape 1 x Hermaphrodite Connector 1 x User Manual
