- Hign-concerned Chemical: None
- Material: aluminum shaft
- Model Number: SK-720L / SK-870L
- Origin: Mainland China
- Cutting Accuracy: 0.0004 in / 0.01 mm
- Max Cutter Width: 24.8 in / 630 mm, 30.7 in / 780 mm
- Max Paper Feed: 28.3 in/720 mm, 34.3 in/870 mm
- Software: Signmaster
- Compatible System: Windows XP / VISTA / 7 / 8 / 10 / 11
- Number of Pinch Rollers: 3
- Language: DM/PL, HP/GL
- Contour Type: Manual Contour
- Memory: 16MB
- Cutting Force: 10-500g
- Cutting Speed: 10-800 mm/s
- Motherboard: ARM
- Blade Diameter: 0.08 in / 2 mm
- Blade Length: 0.91 in / 23 mm
- Blade Angle: 45 Degrees
- Drive Motor: 42 Stepper Motor
- Voltage: 110V(US/CA/MX), 220V(EU/RU)
-
Model: SK-720L
-
Voltage: 110V(US/CA/MX), 220V(EU/RU)
-
Max Paper Feed: 28.3 in / 720 mm
-
Max Cutter Width: 24.8 in / 630 mm
-
Cutting Accuracy: 0.0004 in / 0.01 mm
-
Software: SignMaster
-
Compatible System: Windows XP / VISTA / 7 / 8 / 10 / 11
-
Control Mode: USB & COM & Bluetooth
-
Number of Pinch Rollers: 3
-
Language: DM/PL, HP/GL
-
Contour Type: Manual Contour
-
Memory: 16MB
-
Cutting Force: 10-500g
-
Cutting Speed: 10-800mm/s
-
Number of Blades: 3
-
Motherboard: ARM
-
Blade Diameter: 0.08 in / 2 mm
-
Blade Length: 0.91 in / 23 mm
-
Blade Angle: 45 Degrees
-
Drive Motor: 42 Stepper Motor
-
File Formats: PLT, EPS, SVG, DXF, AI
-
Compatible Softwares: Signmaster, Signcut, ARTCUT, Graph-Cut, Coreldraw
-
Material: Aluminum Alloy
-
Product Size (L x W x H): 37 x 20.5 x 41.7 in / 95 x 52 x 106 cm
-
Net Weight: 29.76 lbs / 13.5 kg
-
1 x Cutter Plotter Machine
-
1 x SignMaster Software
-
1 x Floor Stand
-
5 x Rolls of Vinyl
-
1 x Power Cord
-
1 x USB Flash Disk
-
1 x User Manual
-
1 x Set of Accessories
-
Model: SK-870L
-
Voltage: 110V(US/CA/MX), 220V(EU/RU)
-
Max Paper Feed: 34.3 in / 870 mm
-
Max Cutter Width: 30.7 in / 780 mm
-
Cutting Accuracy: 0.0004 in / 0.01 mm
-
Software: SignMaster
-
Compatible System: Windows XP / VISTA / 7 / 8 / 10 / 11
-
Control Mode: USB & COM & Bluetooth
-
Number of Pinch Rollers: 3
-
Contour Type: Manual Contour
-
Memory: 16MB
-
Cutting Force: 10-500g
-
Cutting Speed: 10-800mm/s
-
Number of Blades: 3
-
Motherboard: ARM
-
Blade Diameter: 0.08 in / 2 mm
-
Blade Length: 0.91 in / 23 mm
-
Blade Angle: 45 Degrees
-
Drive Motor: 42 Stepper Motor
-
File Formats: PLT, EPS, SVG, DXF, AI
-
Compatible Softwares: Signmaster, Signcut, ARTCUT, Graph-Cut, Coreldraw
-
Language: DM/PL, HP/GL
-
Material: Aluminum Alloy
-
Product Size (L x W x H): 43.3 x 20.5 x 41.7 in / 110 x 52 x 106 cm
-
Net Weight: 33 lbs / 15 kg
-
1 x Cutter Plotter Machine
-
1 x SignMaster Software
-
1 x Floor Stand
-
5 x Rolls of Vinyl
-
1 x Power Cord
-
1 x USB Flash Disk
-
1 x User Manual
-
1 x Set of Accessories
-

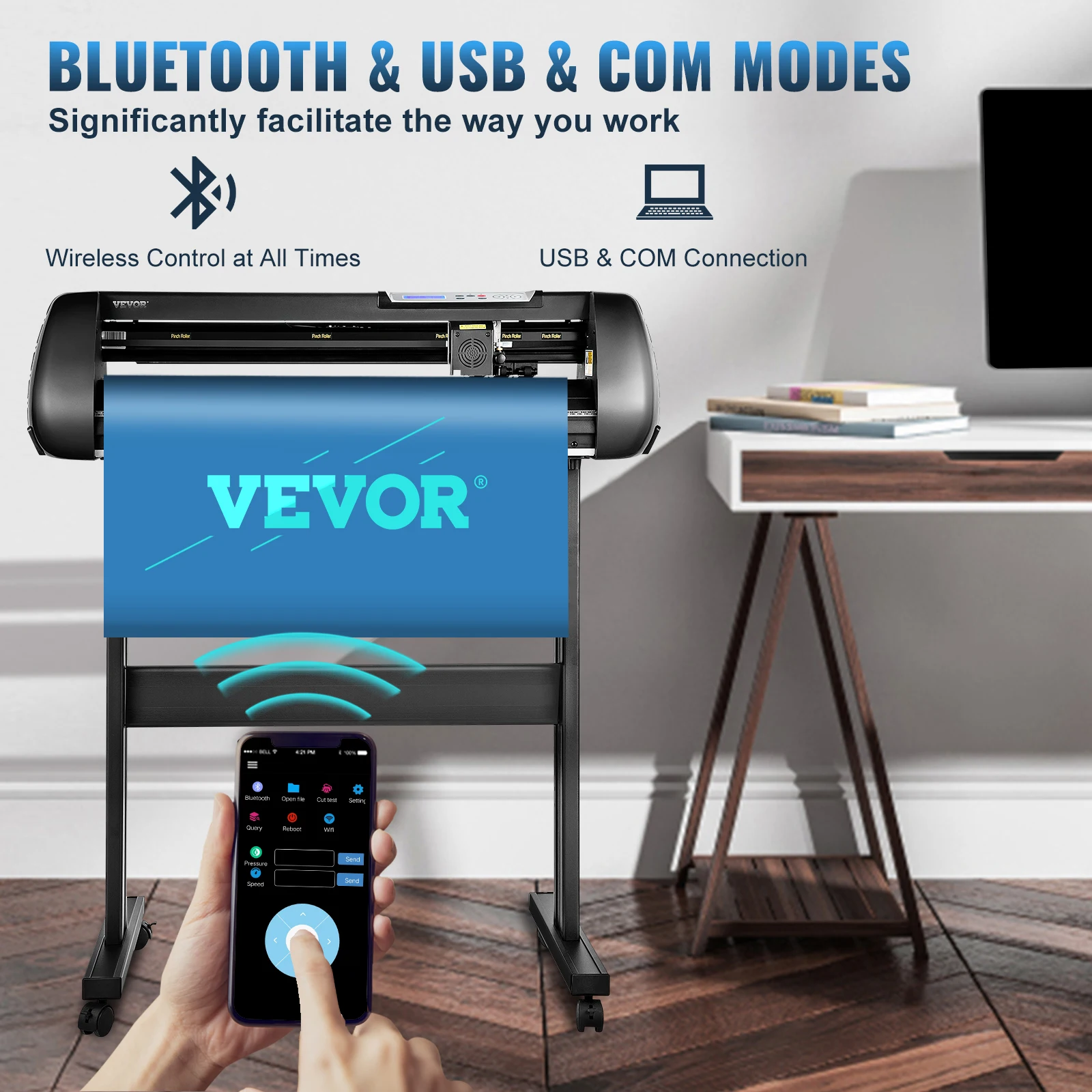

Bluetooth Connection: Industry-leading bluetooth control tech enables users to operate our vinyl plotter by mobile application effortlessly. Besides, you can also connect this cutter to computers by USB or COM cable. System: Windows XP / Vista / 7 / 8 / 10 / 11. Advance your cuts with computer compatibility and increase efficiency. It will feel like you have a team working alongside you.
-

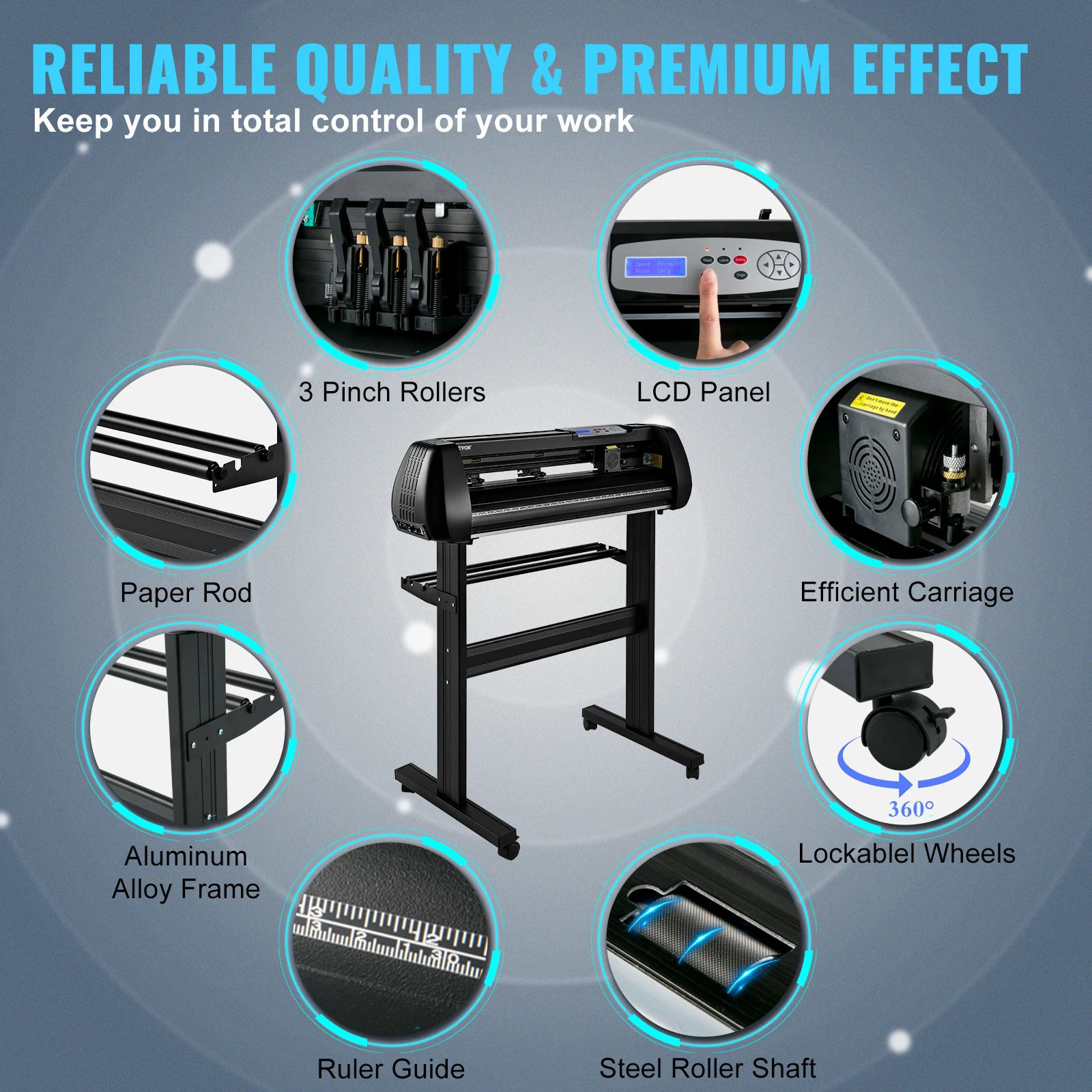

Steel Roller Shaft: Compared with a traditional aluminum shaft, our steel-made shaft boasts a high accuracy, which won’t deviate after the paper feeds up to 400 in / 10 m. This device will offer you a sensitive and intelligent operation with 10-500g cutting pressure, 10-800 mm/s cutting speed, and 0.0004 in / 0.01 mm blade accuracy. Feel every cut and achieve precise results.
-
Efficient LCD Panel: Coming with an illuminated LCD interface and a large control panel, this plotter cutter makes the operation more explicit. 28in / 34in large cutting area with powerful stepper motors help users to cut away the excess medium from the design that is not needed, leaving just the contour feature around your design. Max Paper Feed: 28.3 in / 720 mm / 34.3 in / 870 mm; Max Cutter Width: 24.8 in / 630 mm / 30.7 in / 780 mm.
-

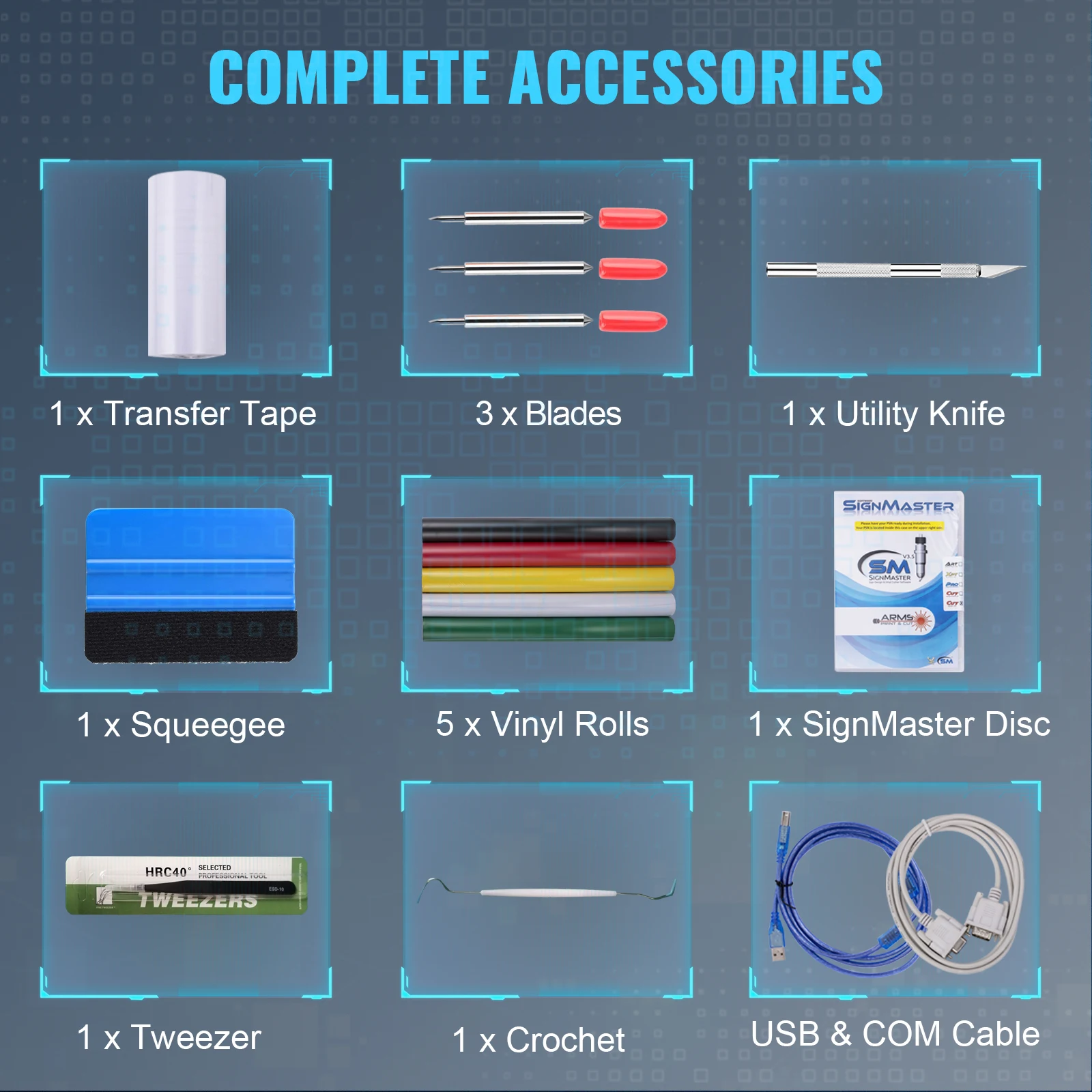

Unmatched All-in-one Accessories: With 5 exclusive rolls of vinyl (black, white, red, blue, and yellow), a utility knife, a ball pen core, holders, 3 replaceable blades, and other items, this practical plotter machine bundle will definitely enjoy a good reputation for its multiple accessories and perfectly satisfy your various DIY requirements.
-
Powerful Design for Multiple Uses: Our intricately designed cutting plotter is equipped with a high-quality aluminum alloy floor stand featuring 4 caster wheels for convenient movement. Besides, inside fuses can decrease the possibility of injury. This vinyl cutter machine can be applied to advertise engraving, heat transfer, wall decoration, plate making and many other fields.
