- Hign-concerned Chemical: None
- Structure: Surface Circulation Pump
- Origin: China Mainland
- Certification: CE
- Power (W): Electric
- Model: VV-BXG-RS15 6SB
- Power: 93/67/46W
- Voltage: 110V/60HZ
- Body Color: Green/Silver
- Pump Head: Stainless Steel
- Pump Housing: Aluminum
- Impeller Material: PES
- Shaft Material: Ceramic
- Bearing Material: Carbon
- Noise Level: 25dB
- Inlet/Outlet Dia.: 3/4" G Thread
- Max. Flow Rate: 10.5/7.4/5.3 Gpm(40/28/20 L/min)
- Max. Head Lift: 20/16.5/10ft (6/5/3 m)
- Rated Pressure: 0.6 Bar / 8.7 Psi
- Max. Pressure: 10 Bar/ 145 Psi
- Cable Length: 4 ft / 1.25 m
- Mounting Position: Shaft Horizontal
- Protection Level: IP44
- Insulation Class: F
- Product Size: 5.1×4.6×4.7 in / 13×11.7×12 cm
-

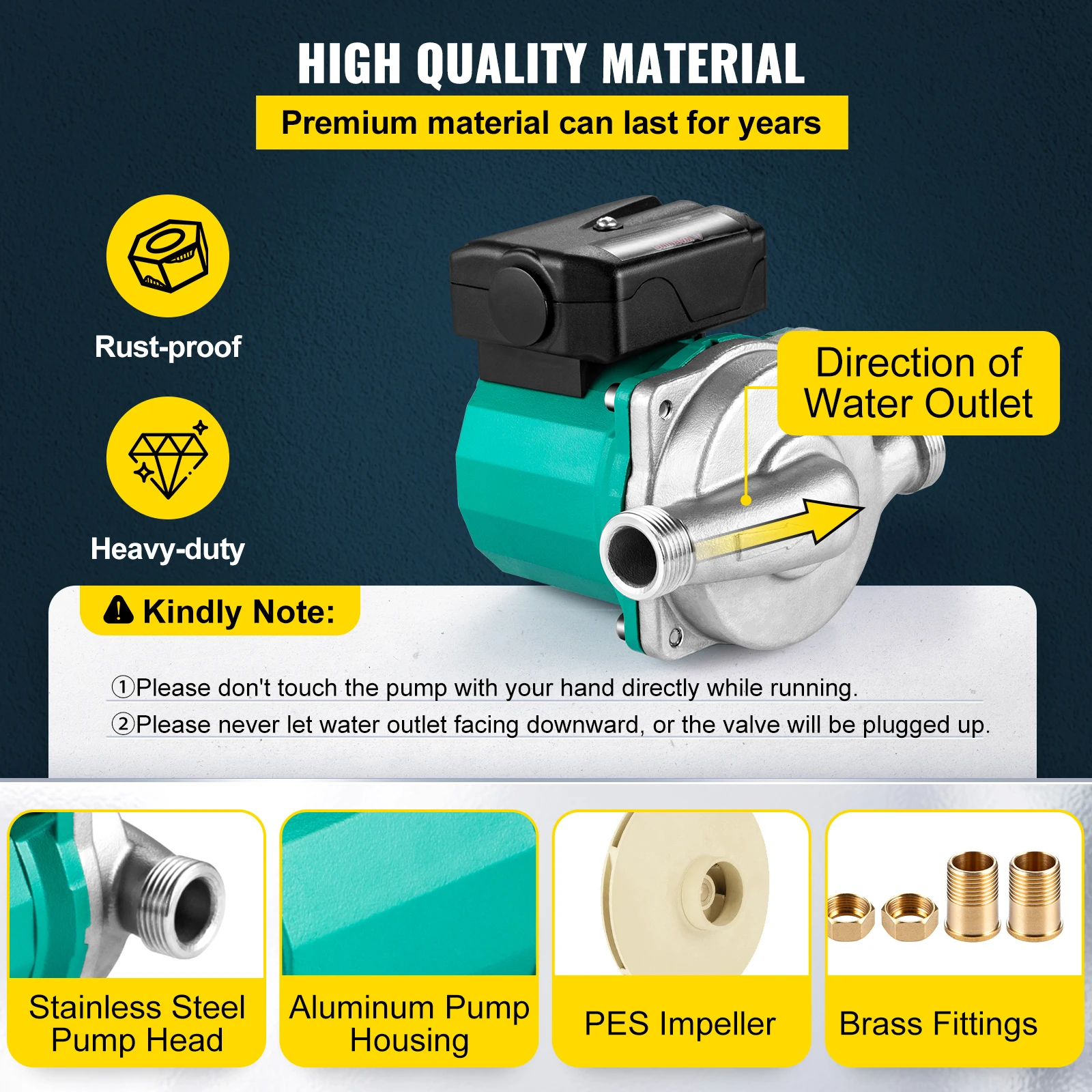

Note: Never let water outlet facing downward, or the valve will be plugged up.
-
Stainless Steel Material
-
Adjustable Speed Switch
-
Large Flow & Quiet Running
-
Easy Installation
-
Premium Tough Quality
-
Incredibly Low Prices
-
Fast & Secure Delivery
-
30-Day Free Returns
-
24/7 Attentive Service
-
Model: VV-BXG-RS15 6SB
-
Power: 93/67/46W
-
Voltage: 110V/60HZ
-
Body Color: Green/Silver
-
Pump Head: Stainless Steel
-
Pump Housing: Aluminum
-
Impeller Material: PES
-
Shaft Material: Ceramic
-
Bearing Material: Carbon
-
Noise Level: 25dB
-
Inlet/Outlet Dia.: 3/4" G Thread (Note: The brass adapter has a 3/4″ G thread diameter and is compatible with 1/2″ NPT)
-
Max. Flow Rate: 10.5/7.4/5.3 Gpm(40/28/20 L/min)
-
Max. Head Lift: 20/16.5/10ft (6/5/3 m)
-
Rated Pressure: 0.6 Bar / 8.7 Psi
-
Max. Pressure: 10 Bar/ 145 Psi
-
Cable Length: 4 ft / 1.25 m
-
Liquid temperature:32~212℉/0~100℃
-
Ambient temperature: 32~104℉/0~40℃
-
Mounting Position: Shaft Horizontal
-
Protection Level: IP44
-
Insulation Class: F
-
Product Size: 5.1×4.6×4.7 in / 13×11.7×12 cm
-

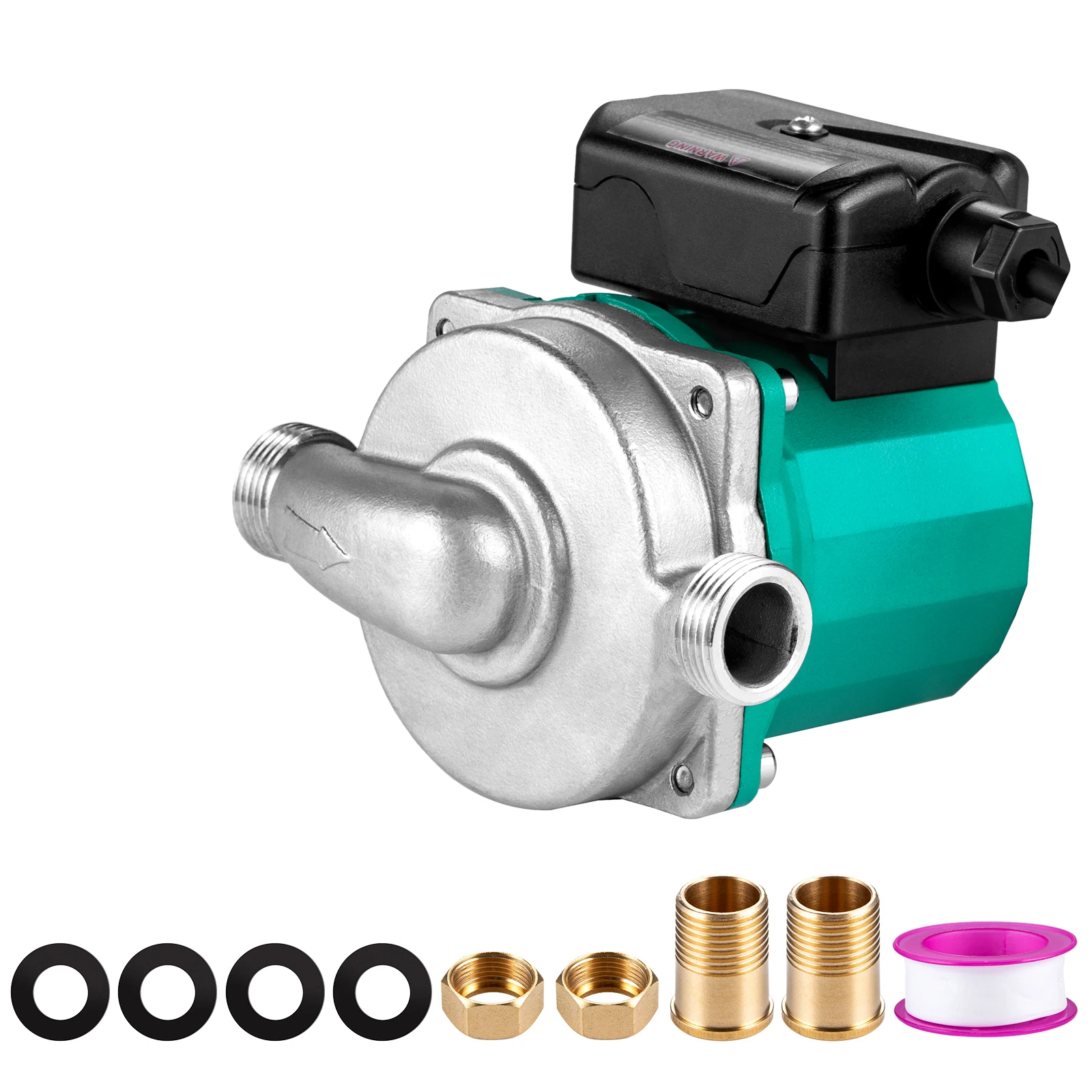

1 x Recirculating Pump
-
2 x Brass Fittings
-
2 x Rubber Gaskets
-
1 x Water-stop(3.28ft)
-
1 x Instruction Manual
-

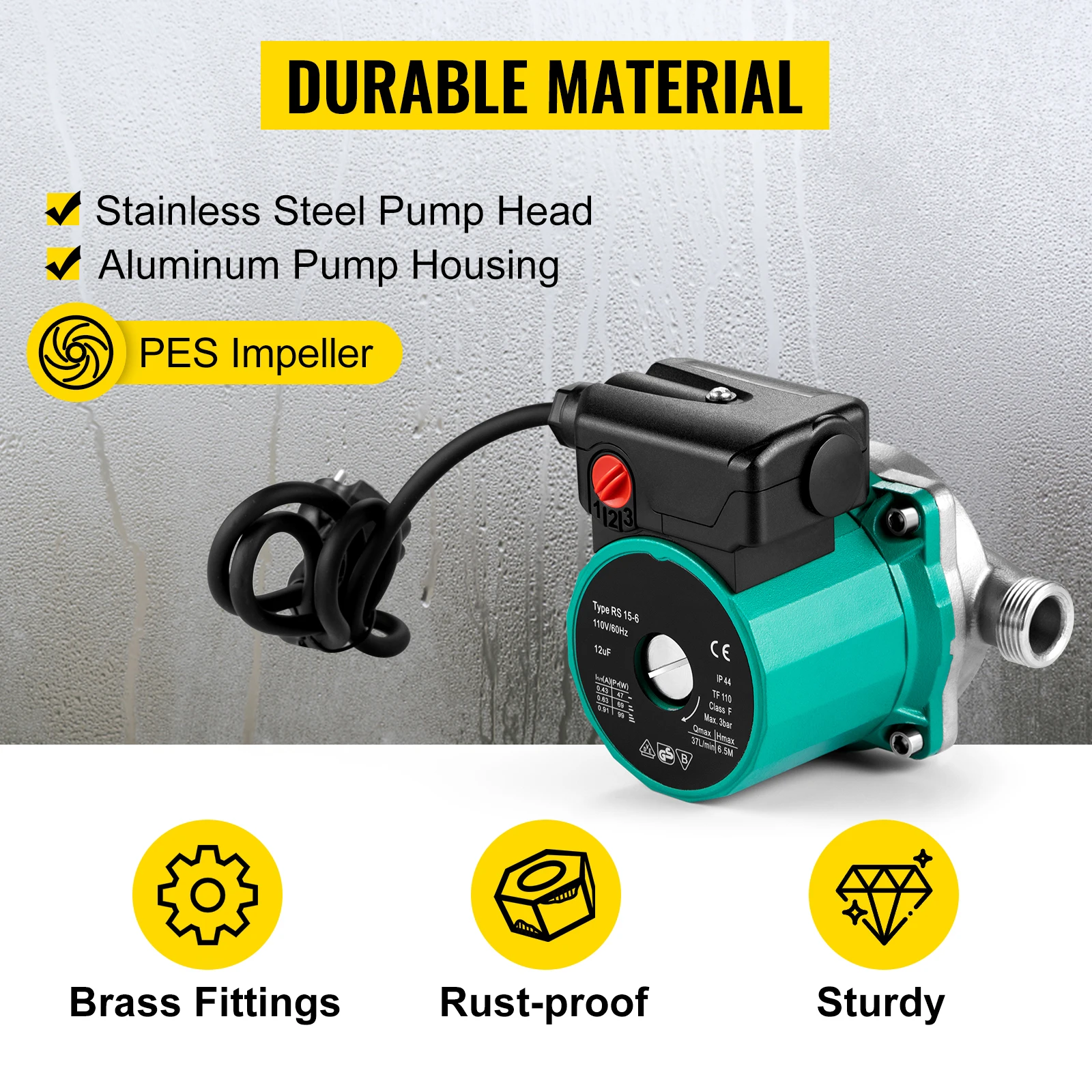

Stainless Steel Material: Our recirculating pump is constructed with a heavy-duty stainless steel pump head, aluminum pump housing, and PES impeller, rust-proof, waterproof. Brass fittings and water-stop will come with the pump for corrosion-proof and leakage-proof. Note: The brass adapter has a 3/4″ G thread diameter and is compatible with 1/2″ NPT.
-

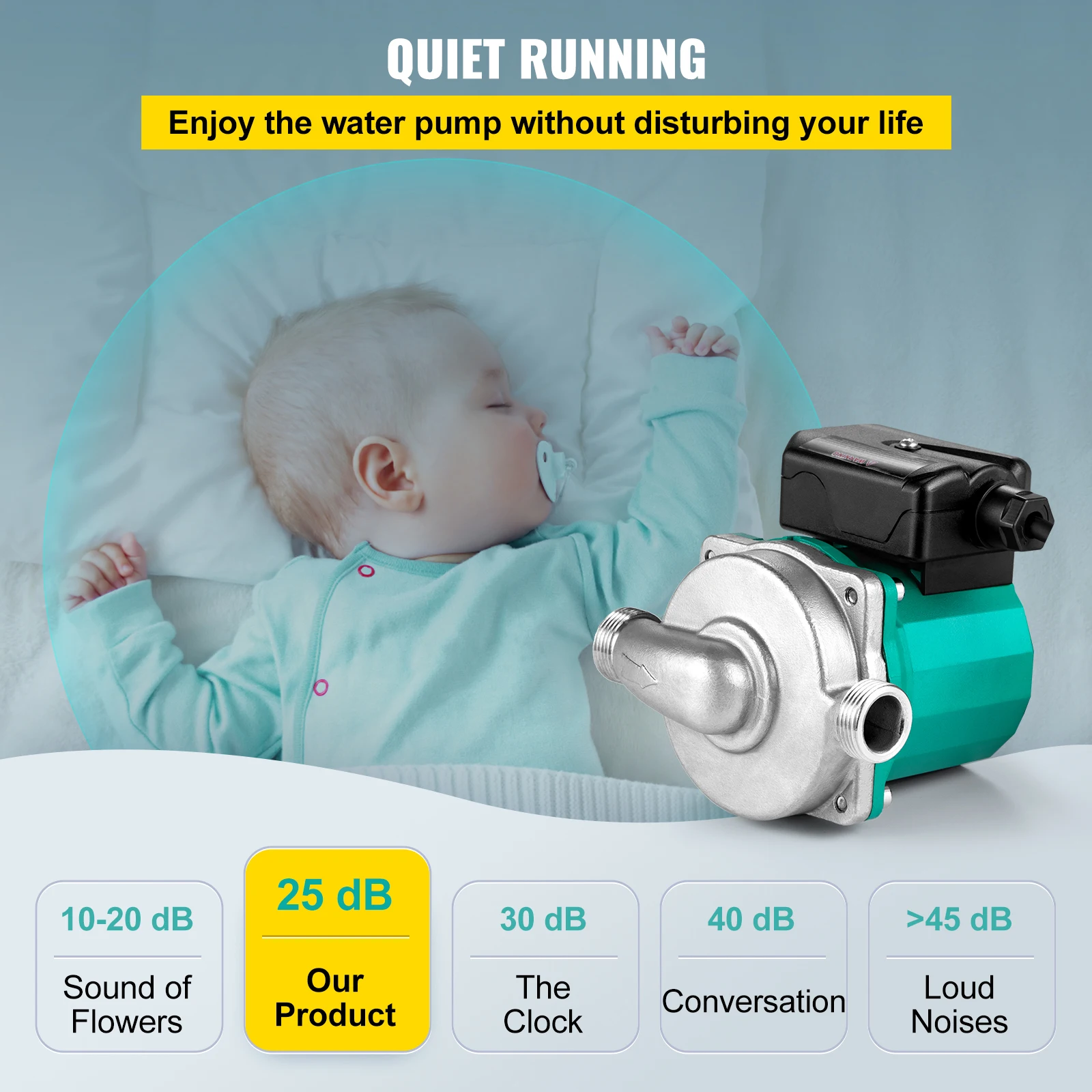

Large Flow & Quiet Running: Powerful circulator pump has max. 40 L/min water flow, max. 10 bar pressure and max. 20 ft head lift. In addition, super silent running property(about 25dB) can provide you with a quiet pump: high performance but low noise.
-

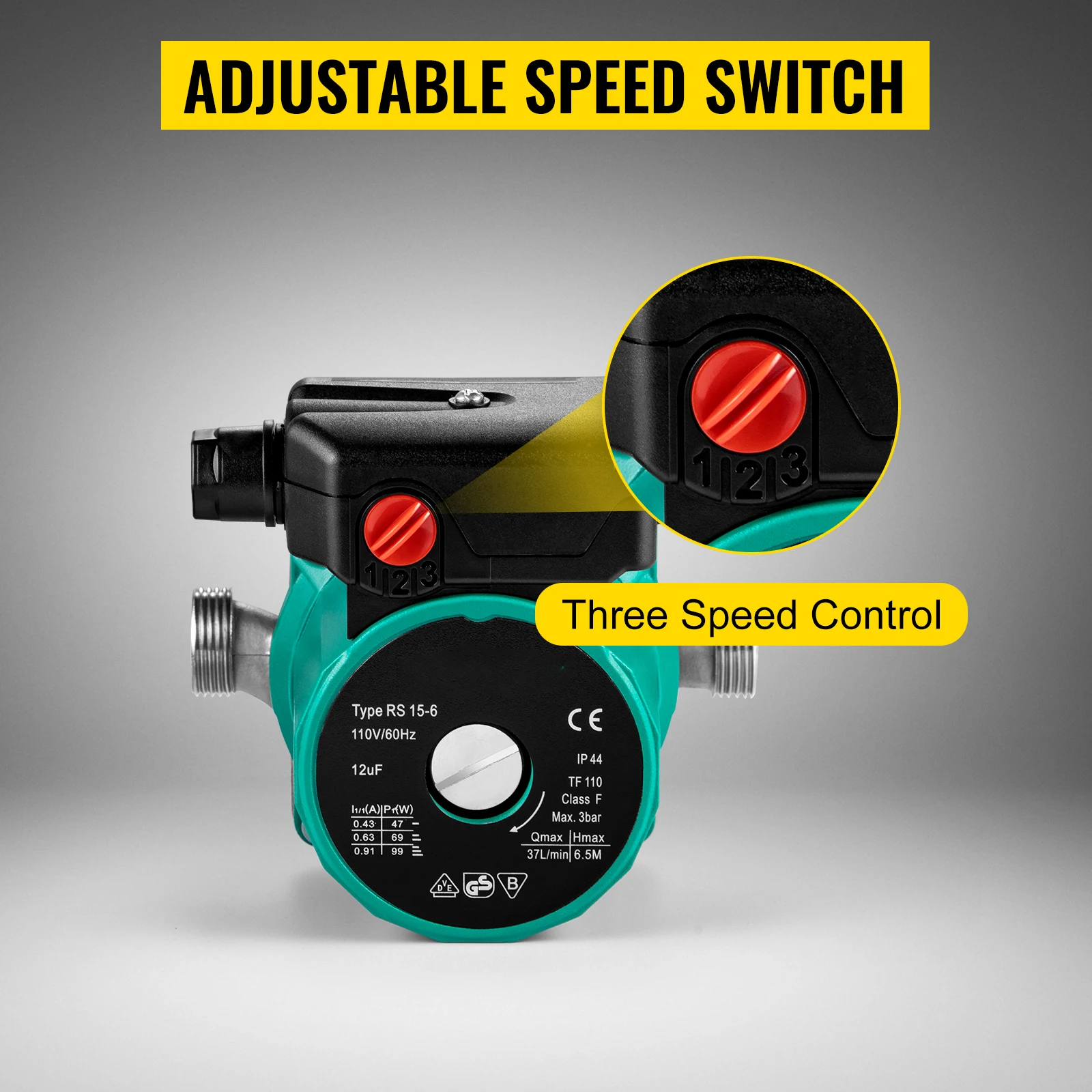

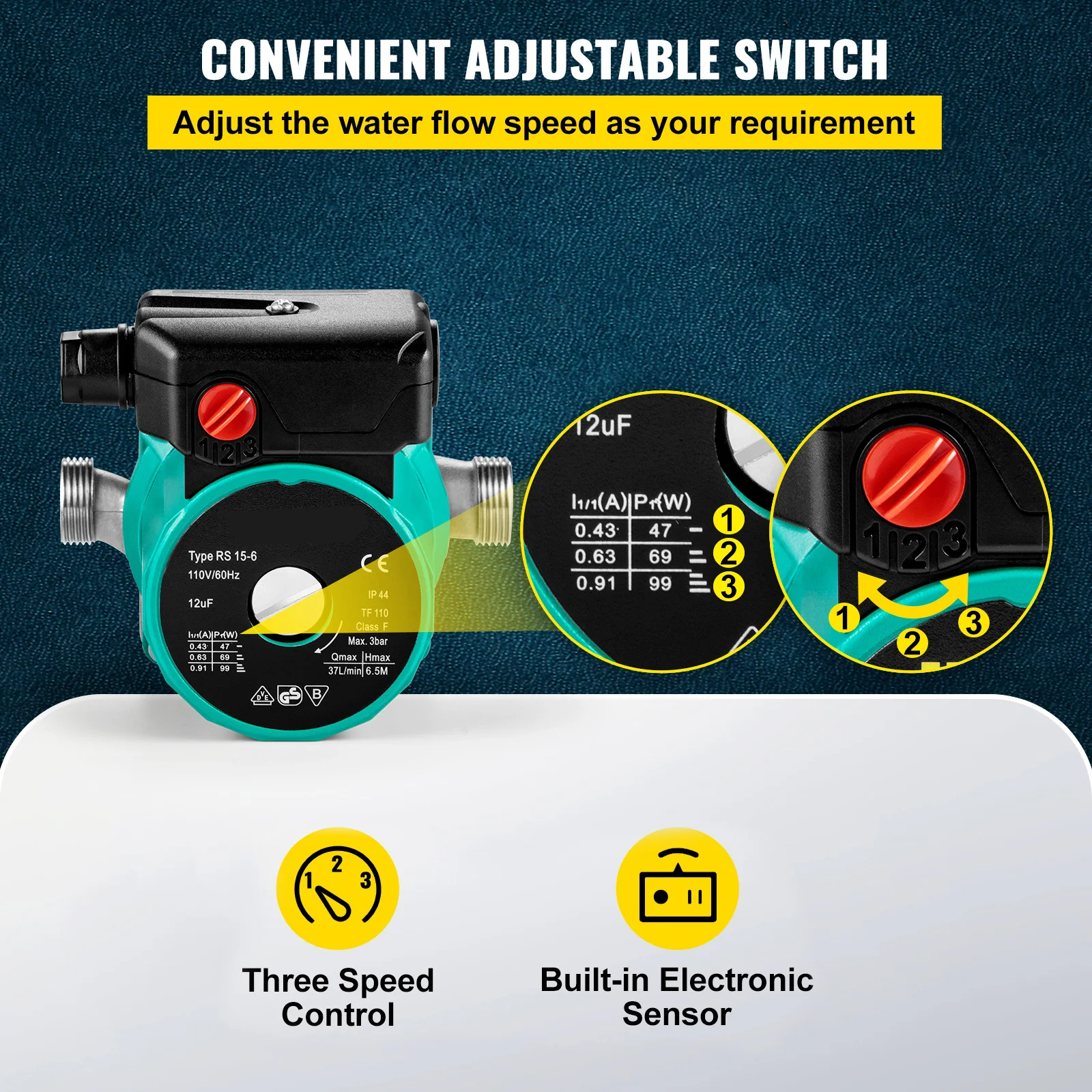

Adjustable Speed Switch: This water circulator pump features a three-power control switch in 46/67/93W. It is convenient for you to adjust the flow rate as your different requirements.
-
Easy Installation: Our circulating pump for hot water can be used directly to drinking water pipelines with a wrench, fitting with an NPT 3/4" inlet/outlet hose. The water taste of lubricating oil will disappear after 3 to 5 times of use. The shaft of the pump should be kept horizontal after installation.
-

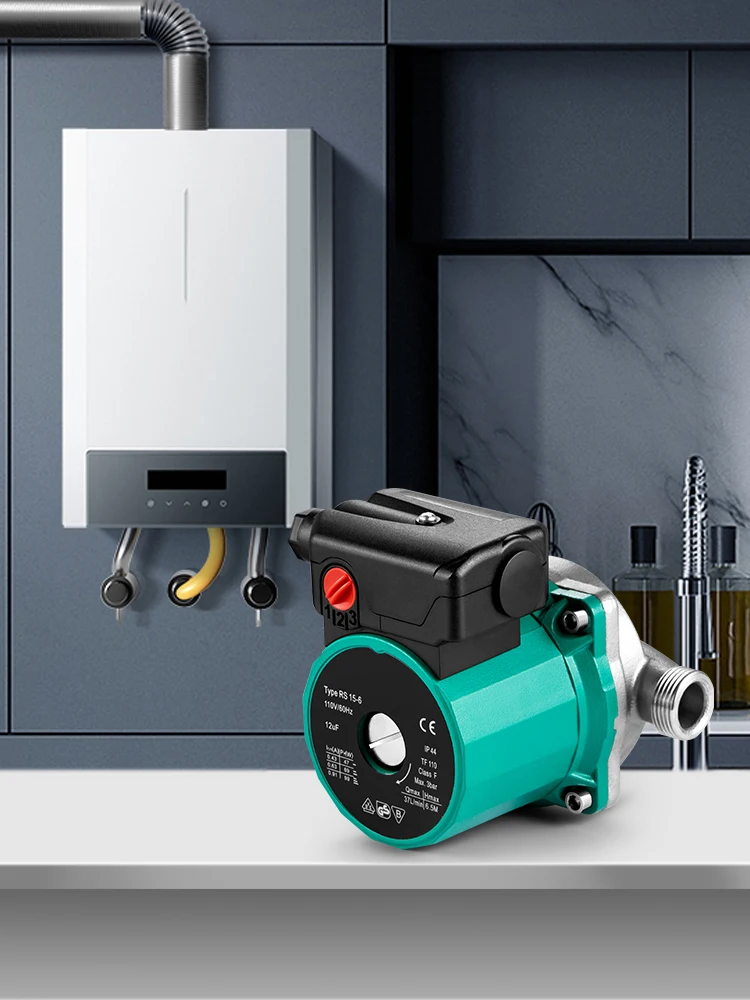

Wide Application: The recirculating hot water pump is suitable for many applications, such as city buildings, suburban villas, houses, water and pressurized with industrial equipment, air conditioning, boilers, solar circulating system, water heater system and so on.
